- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://www.asus.com/au
- Brand Name
- Asus ROG
- Product Line
- Hyperion
- Product Series
- GR701 BTF
- Product Type
- Gaming Computer Case

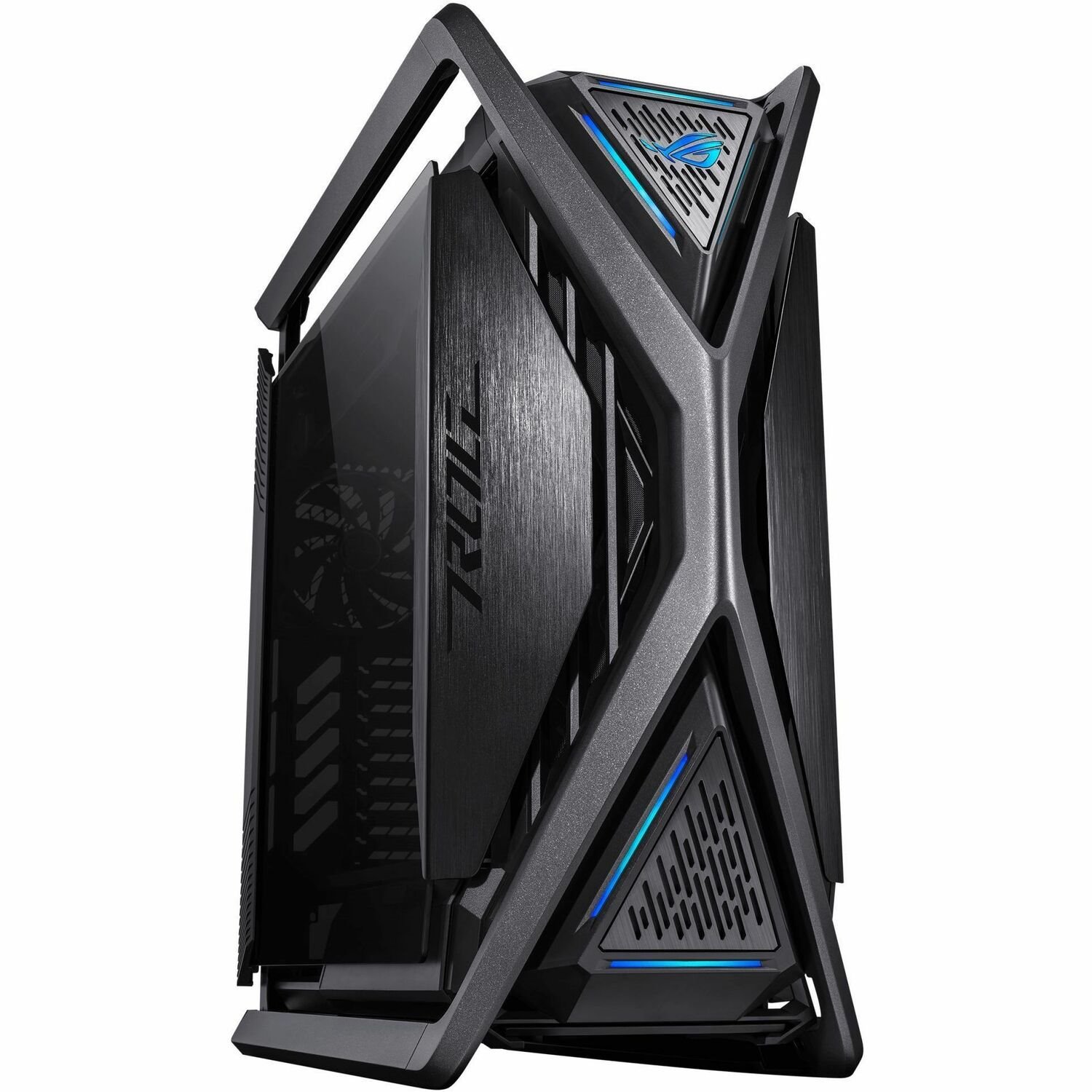

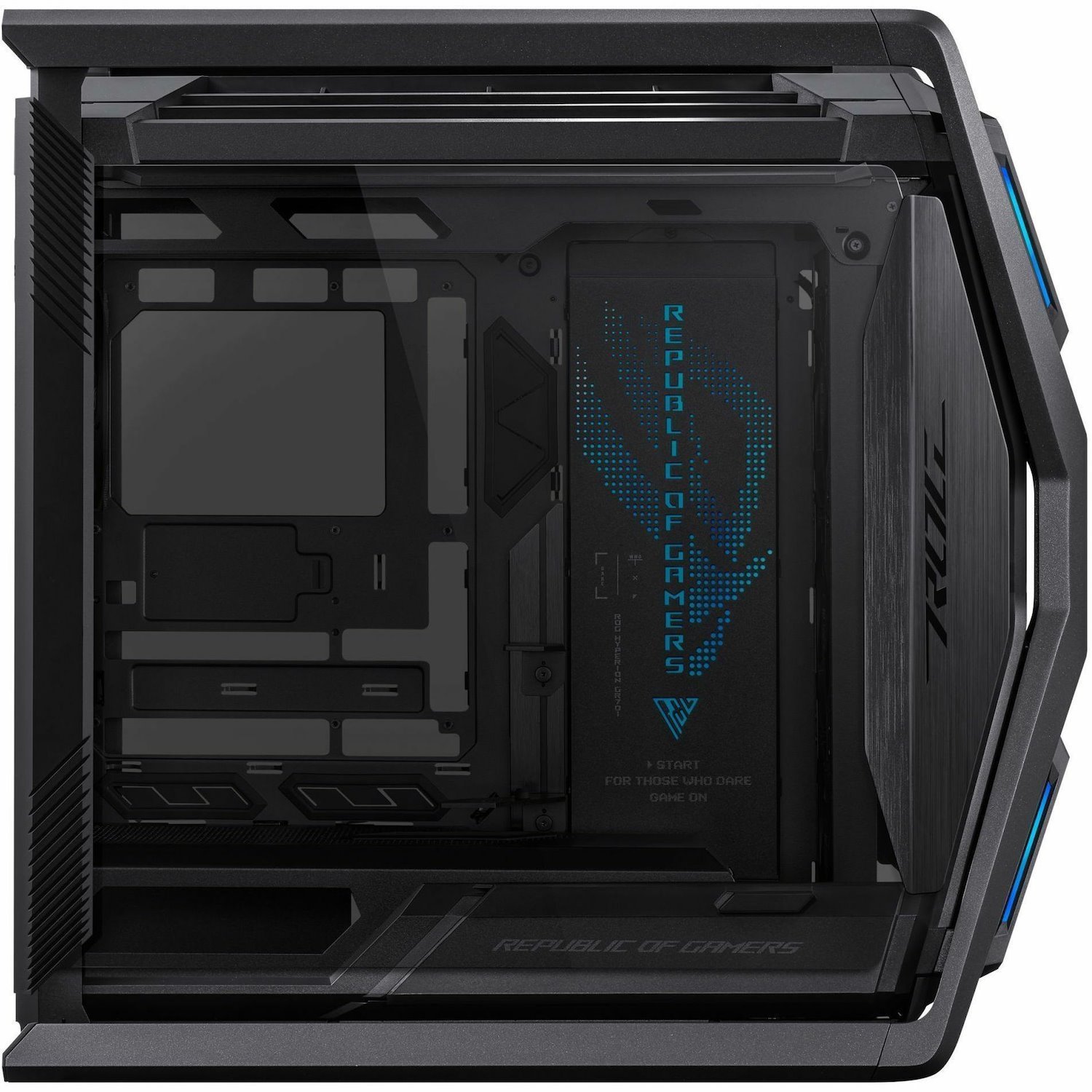

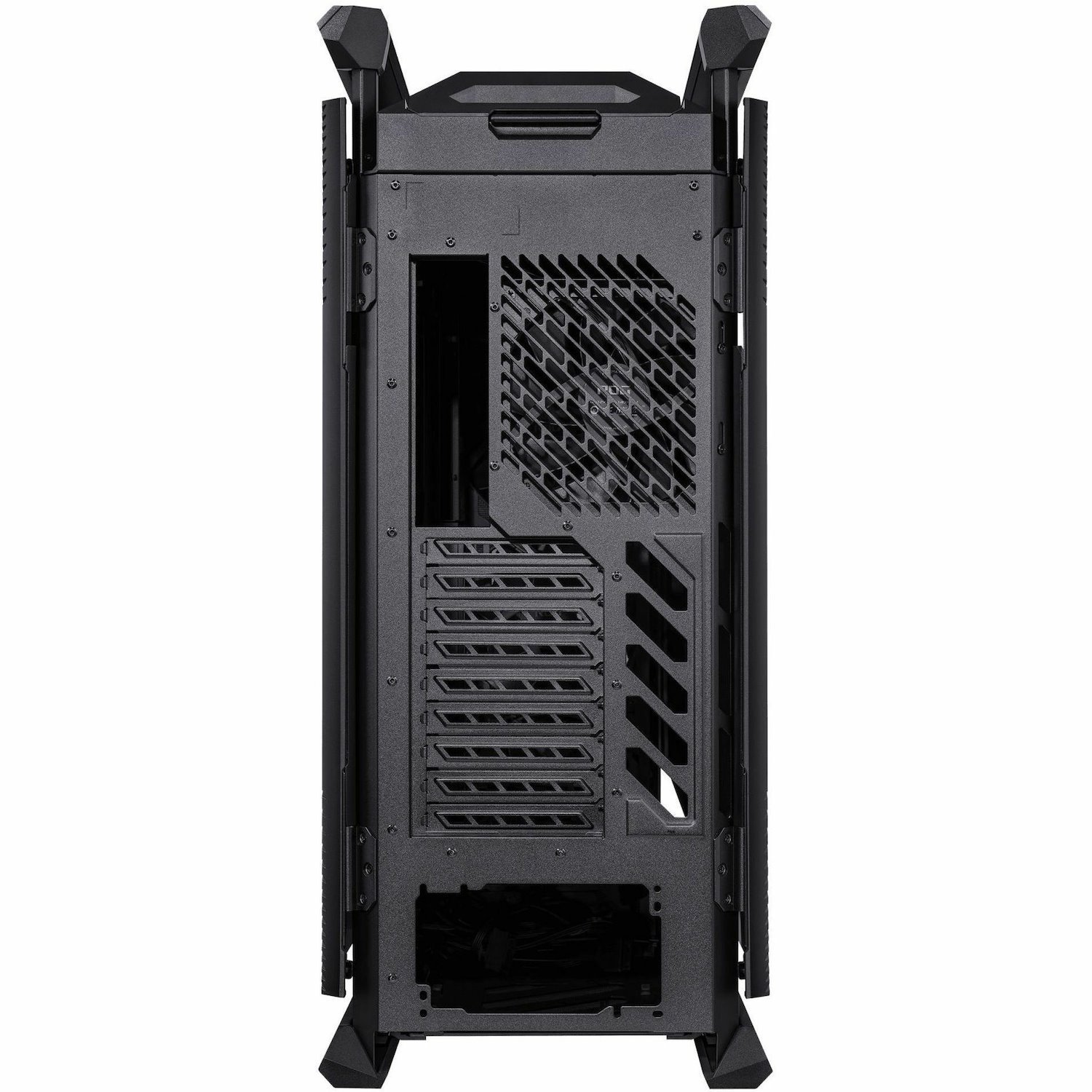

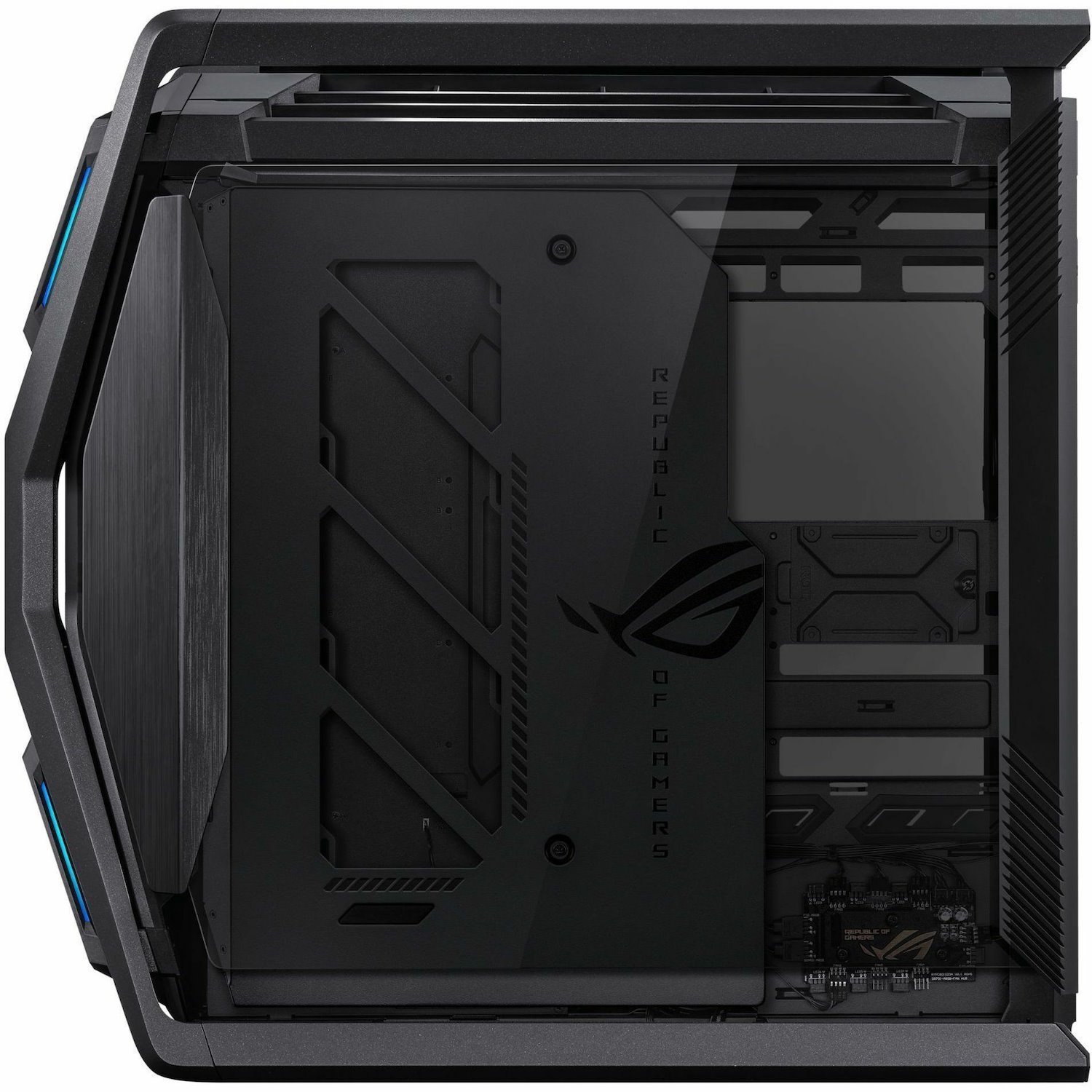

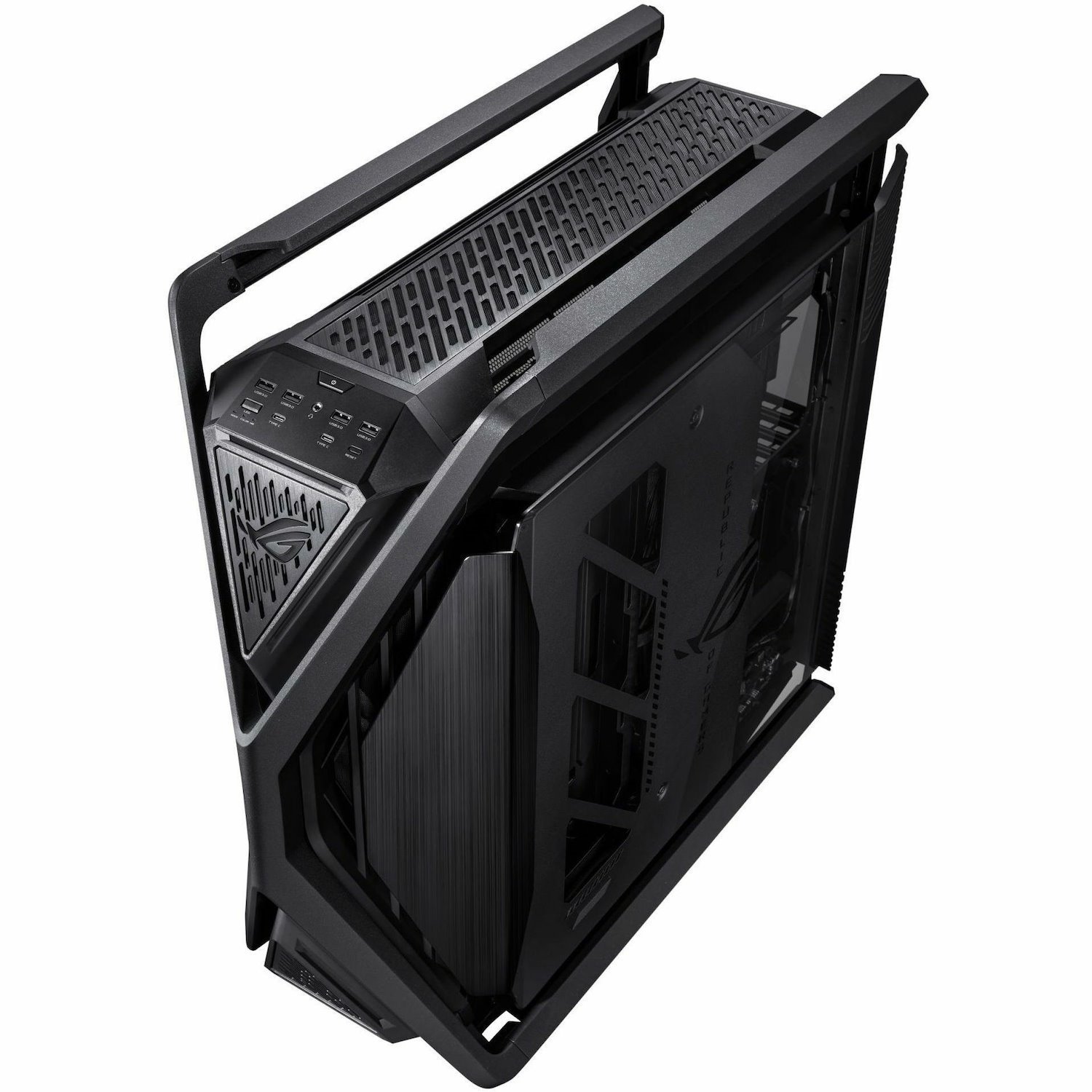

ROG Hyperion GR701 BTF Edition E-ATX computer case, motherboard hidden connectors design support, 420 mm dual radiator support, four 140 mm fans, metal GPU holder, component storage, ARGB fan hub, 60W fast charging.
- Extra Clean:Supports Motherboard's hidden connectors design by having virtually no wire and cluttering.
- Extra Cooling:Dual 420mm radiator support, four 140 mm fans and a built-in fan hub offer massive airflow possibilities
- Extra Space:The beefiest graphics cards get plenty of room; cable management gets an expansive chamber that is 34 mm deep, with a 46 mm wide routing channel
- Extra Convenience:Hinged tool-free side panels, a built-in storage drawer and an integrated graphics card holder come together to amp up the building experience
- Extra Power:Dual USB Type-C ports, 60-watt fast charging, aluminum-reinforced frame and handles deliver power and premium ruggedness
- Technical Information
- Motherboard Supported
- Micro ATX
- Mini ITX
- ATX
- Number of Fans Supported
- 6
- Number of Fans Installed
- 4
- Installed Fan Size
- 140 mm
- Features
- Cable Management
- Reset Button
- Dust Filter
- Bays
- Number of Internal 2.5" Bays
- 5
- Number of Internal 2.5"/3.5" Bays
- 2
- I/O Expansions
- Total Number of Expansion Slots
- 12
- Interfaces/Ports
- Total Number of USB Ports
- 6
- USB Port Details
- 4 x USB 3.2 Gen 1
- 1 x USB 3.2 (Gen 2) Type C
- 1 x USB 3.2 Gen 2x2 Type C
- Front USB
- Yes
- Total Number of Audio In Ports
- 1
- Front Audio In
- Yes
- Total Number of Audio Out Ports
- 1
- Front Audio Out
- Yes
- Microphone
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Metal
- Aluminium
- Die-cast Aluminum Alloy
- Tempered Glass
- Cooler Type
- Fan/Liquid Cooler
- Maximum CPU Cooler Height
- 190 mm
- Maximum PSU Length
- 240 mm
- Maximum GPU Length
- 460 mm
- Height
- 657.9 mm
- Width
- 269.2 mm
- Depth
- 640.1 mm
- Weight (Approximate)
- 21.30 kg
