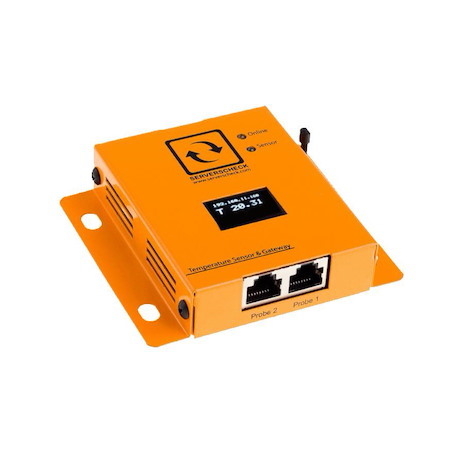

BASE-WIRED - Base Unit (SensorGateway) including built in Temperature Sensor

  • Part: 1406024
  • Model: BASE-WIRED
$608.42

Availability

In Stock

Products are generally in stock, but may ship from overseas warehouses. Please contact us to confirm lead time.

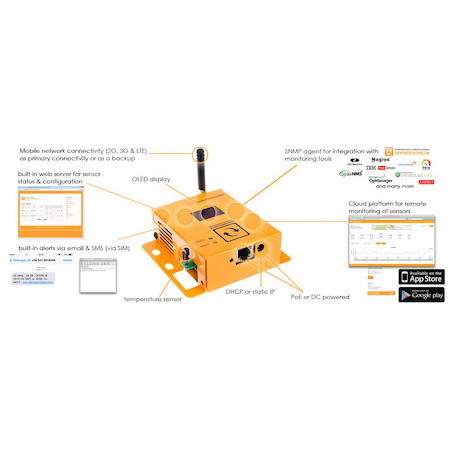

Built-in features:

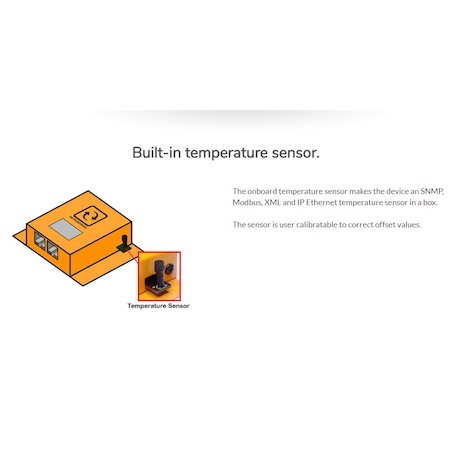

- onboard temperature sensor.

- built-in web server.

- alerting via email, voice call or SMS.

- SNMP, Modbus TCP, JSON and XML.

- DHCP or static IP.

- PoE built-in, optional AC adapter USB power adapters.

- Ultra low power usage (< 0.5W).

- Runs locally - no Internet connectivity required to operate.

- Stand-alone device: no software needed.



Operating temperature range: 0°C to +75°C (+167°F).
Operating humidity range: < 90% rH (non-condensating).
Dimensions: 70 mm (2.7") x 88 mm (3.4") x 22 mm (0.8").
TCP/IP: IPv4 at 10/100 Mbps.
Power Source: PoE: IEEE 802.3af
Power Usage: 1500mW (without sensors attached).
Built-in: web server, SNMP v1, v2 & v3 (MD5/AES), Modbus TCP (soon).
Built-in alerting options: email SMS (over IP) & SNMP Traps.
External sensors probes: 2 sensor probes through straight RJ45 CAT6/7 cable with max distance of 100m or 330ft (subject to cable quality and interference).
Max distance to switch: CAT6/CAT7 up to 100m / 300ft.

Built-in Temperature Monitoring Sensor Specs:
Temperature Resolution: 0.1°C / 0.18°F.
Temperature Reading: -55°C to +125°C (-67°F to +257°F) / SensorGateway operates up to 75°C.
Temperature Accuracy: +/- 1°C (+/- 2°F) over 0°C to +75°C / 32°F to 167°F.

Testing: Base units are compliant with FCC and CE standards.
Use: The SensorGateways should only be used as industrial or commercial test equipment.
