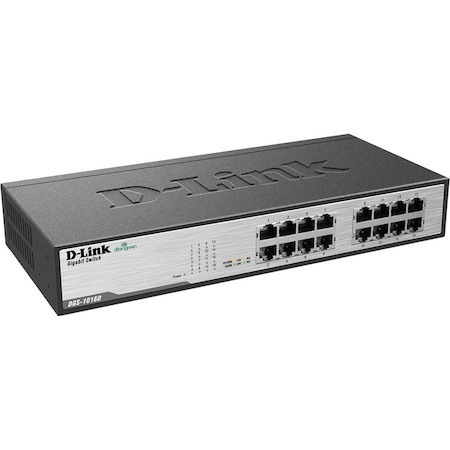

D-Link DGS-1016D 16 Ports Ethernet Switch - 10Base-T, 10/100/1000Base-T

  • Part: 1245086
$132.00

Availability

In Stock

Now, with the new high port-density Desktop Gigabit Switch from D-Link, upgrading your desktops to Gigabit connections has never been more cost-effective and easier. This desktop Gigabit switch offer an economical way for your workgroup to benefit from the increased bandwidth of Gigabit Ethernet.

This switch integrate seamlessly with your existing network equipment, be it Ethernet, Fast Ethernet or Gigabit Ethernet, dispensing you of the need to replace any hardware or software.

With 10/100/1000Mbps auto-sensing, auto-negotiation for every port, plus the ability to exist with your Cat. 5 wall wiring, network installation is a breeze. All you need to do is plug the cables to the switch, and your network is up and running in a matter of minutes.

  • General Information
    • Manufacturer
    • D-Link Systems, Inc
    • Manufacturer Website Address
    • http://www.dlink.com.au
    • Brand Name
    • D-Link
    • Product Type
    • Ethernet Switch
  • Warranty
    • Limited Warranty
    • 2 Year
    • Additional Warranty Information
      • Any replacement product will have the remainder of the initial warranty period

  • Interfaces/Ports
    • Total Number of Network Ports
    • 16
    • Number of Network (RJ-45) Ports
    • 16
    • Port/Expansion Slot Details
    • 16 x Gigabit Ethernet Network
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Twisted Pair Cable Standard
    • Category 5e
    • Ethernet Technology
    • Gigabit Ethernet
    • Network Technology
    • 10Base-T
    • 10/100/1000Base-T
  • Network & Communication
    • Layer Supported
    • 2
  • Reliability
    • MTBF
    • 1882372 Hour
  • Power Description
    • Frequency
    • 60 Hz
    • Power Source
    • Power Supply
    • Power Consumption
    • 27.50 W
  • Physical Characteristics
    • Form Factor
    • Desktop
    • Height
    • 43.9 mm
    • Width
    • 279.9 mm
    • Depth
    • 179.8 mm
    • Weight (Approximate)
    • 1.75 kg
  • Miscellaneous
    • Additional Information
      • Access Method: CSMA/CD
      • Topology: Star
      • MAC Address Learning: Automatic update
    • Certifications & Standards
      • IEEE 802.3: 10BASE-T Ethernet (twisted-pair copper)
      • IEEE 802.3u: 100BASE-TX Fast Ethernet (twisted-pair copper)
      • IEEE 802.3ab: 1000BASE-T Gigabit Ethernet (twisted-pair copper)
      • ANSI/IEEE 802.3: NWay auto-negotiation
      • IEEE 802.3x: Flow Control
      • EIA/TIA-568

      Emission (EMI):

      • FCC Class A
      • CE Class A
      • VCCI Class A

      Safety:

      • CSA International
