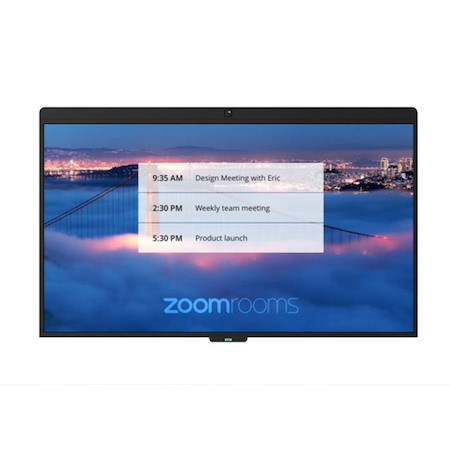

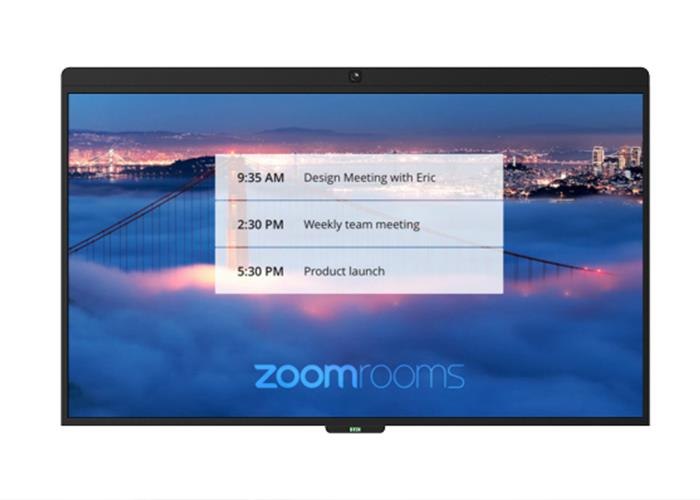

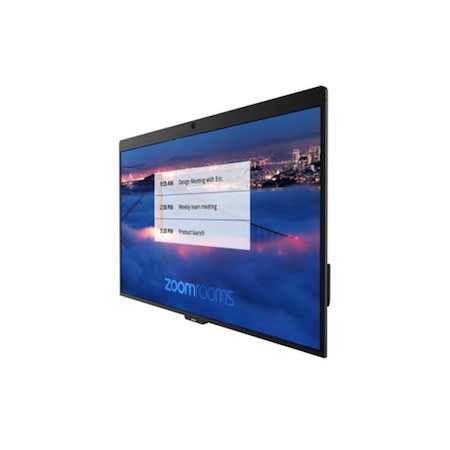

The D7 55″ Board from DTEN is a complete and ready to go Zoom Room hardware solution. With integrated speakers, camera, microphones and Zoom Software already installed it is a complete solution for any Huddle space. Touch-Enabled with seamless annotation. All you need to do is install it on the wall or on a cart, connect power, and either wifi or wired internet and turn it on. Enter your Zoom Room Activation Key and it is ready to meet.
Display
|
Capacitive Multi-Touch
|
Camera and Microphones
| F Value | F2.8 |
| Fixed Lens Infinite Focus | 4K |
| Vertical field of View | 55 deg |
| Microphones | 16 elements microphone array ( with intelligent voice tracking) |
| Bezel Width | 12.9mm ( L, R & Upper ) (16.9mm Lower) |
| Unit Dimensions | 1244.9mm x 773.8mm x 54.16mm |
| Vertical field of View | 55 deg |
Ports
| HDMI Inputs | 2 |
| HDMI Output | 1 |
| VGA Input ( Dsub- 15pin) | 1 |
| PC Audio Input | 1 |
| LAN RJ 45 | 1 |
| RS232 Control | 1 |
| Touch USB | 1 |
| PC Board USB | 6 |
| Co-Ax Digital Audio Output | 1 |
| PC Slot | 1 |
| Audio Output earphone | 1 |
