DTEN75D7 Dten Board D7 Interactive Display 75"

  • Part: 1531221
$12,726.36

Availability

Out of Stock

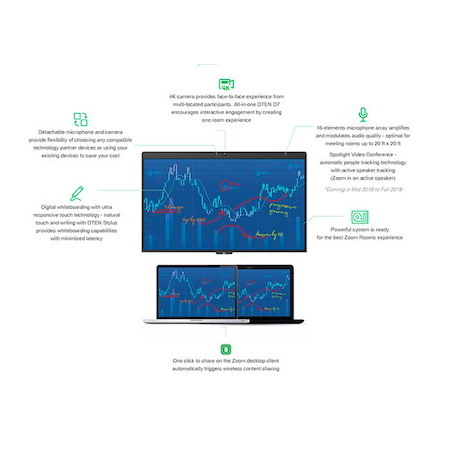

The D7 75″ Board from DTEN is a complete and ready to go Zoom Room hardware solution. With integrated speakers, camera, microphones and Zoom Software already installed it is a complete solution for any Huddle space. Touch-Enabled with seamless annotation. All you need to do is install it on the wall or on a cart, connect power, and either wifi or wired internet and turn it on. Enter your Zoom Room Activation Key and it is ready to meet.

Display

LEDSize 75"
Resolution3840 x 2160 pixels (4K)
Number of Colours1.07B(10bit) Ratio 16:09
Refresh Panel Rate60 Hz
Integrated Speaker 2x10W2x10W


Capacitive Multi-Touch

Touch TechnologyCapacitive
Input MethodTouch, Stylus
Touch Points32768 x 32768
BondingLiquid Optical Bonding


Camera and Microphones

F ValueF2.8
Fixed Lens Infinite Focus4K
Vertical field of View55 deg
Microphones16 elements microphone array ( with intelligent voice tracking)
Bezel Width12.9mm ( L, R & Upper ) (16.9mm Lower)
Unit Dimensions1890mm x 890.8mm x 54.16mm
Vertical field of View55 deg

Ports
HDMI Inputs2
HDMI Output1
VGA Input ( Dsub- 15pin)1
PC Audio Input1
LAN RJ 451
RS232 Control1
Touch USB1
PC Board USB6
Co-Ax Digital Audio Output1
PC Slot1
Audio Output earphone1
