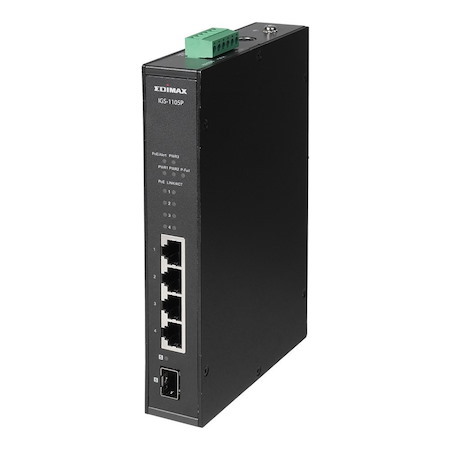

Edimax Igs-1105P Industrial 5-Port Gigabit Din-Rail Switch- 4 Gigabit PoE+ Ports And 1 SFP Uplink

  • Part: 1838947
$135.45

Availability

Out of Stock

Industrial 5-Port Gigabit PoE+ Din-Rail Switch with 1 SFP Port IGS-1105P 4 Gigabit Ethernet PoE+ ports and 1 SFP uplink port 6KV Surge protection to avoid damage of the switch and connected devices Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service P-fail relay with alarm and notification when an event of power failure occurs Supports QoS 802.1p for video & voice traffic priority Wide operating temperature range of -20° ~+70° C (-4° ~+158° F) IEEE 802.3af/at PoE compliant, supports up to 30W per port (power budget: up to 120Watts) Guaranteed PoE long distance to 200 meters (656 ft.) Power backfeed protection to avoid damaging the PoE ports Flexible deployment with DIN-Rail mounting kit and wall-mount feature IP30-rated, fanless rugged industrial design for harsh environments PECIFICATIONS HARDWARE Ports 4 x RJ-45 10/100/1000Base-T Gigabit PoE+ Ports 1 x SFP Ports Connector Removable 6-pin Terminal Block (Pin1/2 for Power 1, Pin 3/4 for P-Fail (Power Failure Alarm Relay), Pin 5/6 for Power 2) Grounding Point with Screw DC In (48-55V) Power Jack (for Power 3) LED Indicators Per Port: Link/Act, PoE Per Unit: PoE/Alert, PWR1, PWR2, PWR3, P-Fail Power Input External Power Supply Power Input: 48V~55VDC (Terminal Block) Redundant Power Input:48~55VDC (Terminal Block) DC Input: 48~55VDC Operating Current: 0.25A@50VDC, 12.5W (System) Mounting DIN-rail Mount (DIN-rail Mount Kit Included) / Wall Mount Housing Metal, IP30-rated Fan Fanless Dimensions 180(H) x 32(D) x 130(W) mm Weight 675g PERFORMANCE Switching Capacity 10Gbps MAC Address 2K Buffer Memory 2Mb Jumbo Frame 9KB Transmission Method Store and Forward Filtering / Forwarding Rates Max. 7.44Mpps 1000Mbps port – 1,488,000pps 100Mbps port – 148,800pps 10Mbps port – 14,880pps Advanced Feature IEEE 802.1p Quality of Service (QoS) POWER OVER ETHERNET Standard IEEE 802.3af (PoE), IEEE 802.3at (PoE+) Power Output Up to 30W pe
