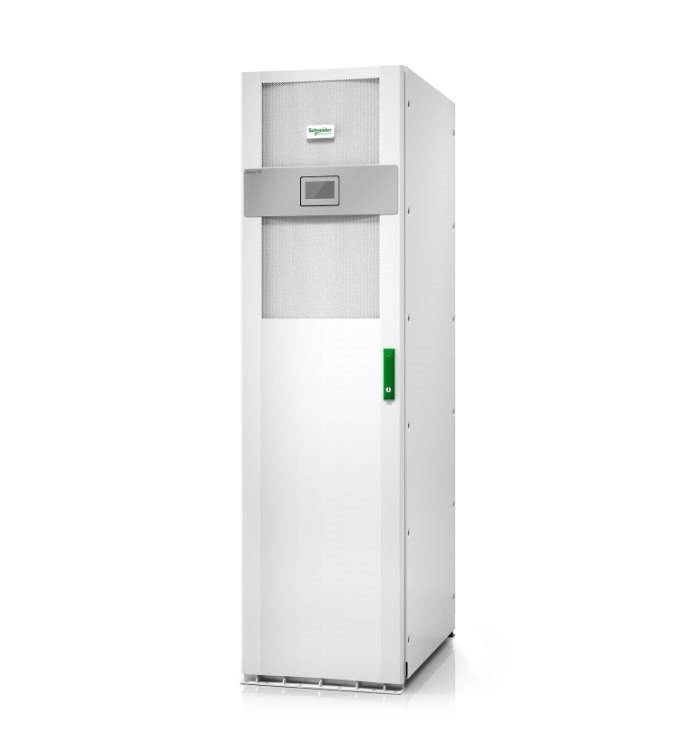

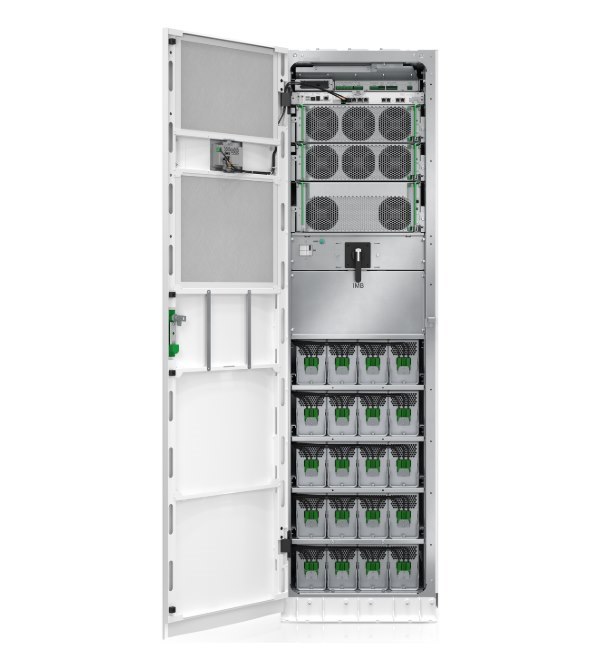

Highly efficient, easy-to-deploy 60kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
| Presentation | Highly efficient, easy-to-deploy 60kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service. |
|---|---|
| Lead time | Usually Ships within 2 Weeks |
| Main Input Voltage | 400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases |
|---|---|
| Input voltage | 380 V 415 V |
| Maximum input current | 108 A |
| Max short time withstand current | 65 kA |
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | From 0.7 leading to 0.7 lagging without any derating |
| Cos phi | 0.99 |
| Input voltage limits | 340...460 V 400 V |
| Network frequency | 40...70 Hz |
| Output voltage | 400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases |
| Output voltage | 380 V 415 V |
| Rated power in W | 60 kW |
| Rated power in VA | 60 kVA |
| Bypass type | Built-in static bypass |
| Crest factor | 2.5 |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 60 kVA |
| Maximum configurable power in W | 60 kW |
| Output harmonic distortion | < 1% linear load and < 3% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Output voltage tolerance | +/- 5% after 2ms +/-1% after 50ms |
| Wave type | Sine wave |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Max current discharge | 163 A |
|---|---|
| Battery type | Lead-acid internal sold separately |
| Control panel | Touch screen LCD user interface |
| UPS connectivity | Embedded network management card 4 |
| Colour | White |
| Height | 197 cm |
| Width | 55 cm |
| Depth | 84.7 cm |
| Net weight | 281 kg |
| USB compatible | No |
| Provided equipment | Dust filter Installation manual Integrated network management Start-up service EcoStruxure Ready |
| Redundant | No |
| Range of product | Galaxy VS |
| Product or component type | Uninterruptible power supply (UPS) |
| Standards | IEC 62040-1-1 IEC 62040-2 OSHPD |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…40 °C |
| Storage altitude | 0…3048 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 10…80 % non-condensing |
| Acoustic level | 54 dBA |
| Heat dissipation | 7103 Btu/h |
| Operating altitude | 0...3300 ft |
| Battery type | Internal modular battery VRLA |
|---|---|
| Battery voltage | 480 V |
| Extended runtime | 0 |
| Discharge battery voltage | 384 V |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 208.2 cm |
| Package 1 Width | 101 cm |
| Package 1 Length | 75.5 cm |
| Package 1 Weight | 250 kg |
| Warranty (in months) | 12 |
|---|
