CUSTOMIZE WITHOUT COMPROMISE
The all new PB Series is an 80 PLUS® Gold certified gaming power supply. Gamers can adjust the colors of the built-in RGB LED fan to match personal preferences. Produce a light show in your gaming rig!
Behold, RGB Unleashed! | Sync Lighting Effects
The PB Series is compatible with RGB-supported motherboards(4pin, 12V). Simply activate the motherboard software and the power supply's RGB LEDs will perfectly complement your gaming rig.
RGB Mode
Gamers can also turn off the M/B RGB override button to manually switch the colors or activate the breathing effect. This mode provides eight options: Red, green, dark blue, yellow, purple, light blue, white and breathing effect. Completely match the theme of your rig!
The power supply also features a built-in memory function to save the applied color, insuring the same selected color appears every time you boot your PC.
Hibernation Mode; Balancing Noise and Thermal Levels
The fluid dynamic bearing (FDB) 135mm fan will switch to hibernation mode automatically once the system's load is lower than 20%. This will maintain the power supply's stability and noise levels. The fan will begin to rotate when the system's load is over 20% at a silent 18dBA output.
Think Sync!
The PB Series is capable of synchronizing with other RGB sync-ready components by using the 4-pin RGB headers (such as RGB fan and LED strip). Create your own synchronized lighting show!

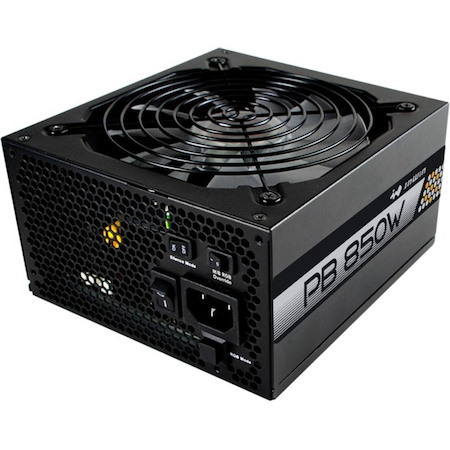

80 PLUS® Gold Certified Fully-Modular Power Supply
The PB Series delivers up to 90% efficiency, generating less heat and effectively reducing operating cost.
5V and 3.3V DC to DC Design
The DC to DC converter design provides superior dynamic response and supports a foundation for greater system stability.
Highly Reliable Japanese Aluminium Electrolytic Capacitors
Premium Japanese capacitors with 105°C rating improve power stability at higher temperatures and provides an ultra-long lifespan.
Fully Modular Cables for Quick and Easy Installation
The fully modular and low-profile cable design lets gamers quickly and easily install for tidier cable management.
- General Information
- Manufacturer
- In Win Development, Inc
- Manufacturer Website Address
- http://www.in-win.com.tw/Corporate/zh/
- Brand Name
- In Win
- Product Series
- PB
- Product Type
- Power Supply
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Specification Compliance
- ATX12V/EPS12V
- Efficiency
- 90%
- Number of Fans
- 1
- Modular
- Yes
- Power Description
- Number of +12V Rails
- 1
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 12 V DC
- 5 V DC
- 3.3 V DC
- -12 V DC
- Output Voltage Detail
- 12 V DC @ 70.9 A
- 5 V DC @ 22 A
- 3.3 V DC @ 22 A
- -12 V DC @ 0.3 A
- 5 V DC @ 3 A
- Output Current
- 70.90 A
- 22 A
- 300 mA
- 3 A
- Output Power
- 850 W
- Physical Characteristics
- Form Factor
- Internal
- Height
- 86 mm
- Width
- 150 mm
- Weight (Approximate)
- 2.64 kg
- Miscellaneous
- Environmentally Friendly
- Yes
