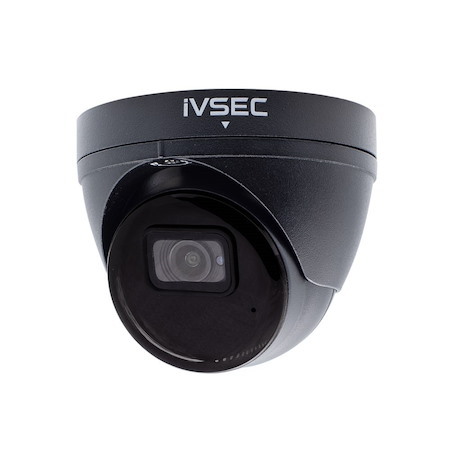

NC110XC-BLK Security Camera
New stylish black housing. Perfect camera for dark ceilings/walls in cafes hotels pubs and clubs either internal or external. Microphone with a distance up to 8m SD card slot and locking mechanism on housing. 2.8MM fixed lens to capture 110 degrees horizontally. Quality AI for Human and Vehicle Detection. A step-up from Smart Motion Detection.
| Camera Type | Turret |
| Image Sensor | 1/2.7″ Progressive CMOS |
| Maximum Video Resolution Megapixels | 5 |
| Maximum Video Resolution | 2880 x 1620 |
| Lens | 2.8 mm H.FOV 110° |
| Lens Type | Fixed |
| Maximum Night IR Distance M | 30 |
| Video Compression | H.265 H.265 H.264 H.264 MJPEG |
| ONVIF depends on firmware version | ONVIF Profile S/G/T 21.12 or greater Http API |
| IP Rating | IP67 |
| Operating Environment | -35ºC to 60ºC 31ºF-140ºF Humidity 20-95 RH |
| Dimensions | 100×100 mm |
| Weight Net | 0.415 |
| Accessories | IV2422X-BLK IV2477X-BLK IV2457X-BLK |
| Power Supply | Power over Ethernet IEEE 802.3af DC12V |
| Power Consumption | <7W |
| Connectors | RJ-45 DC Power Input Reset Button |
| Outdoor Use | Yes |
| Vandal Resistant | Yes |
| Frame Rate at Resolution | 20 |
| Day/Night Mode | Auto |
| LED Types | IR |
| Image Enhancement | SMART IR Flip mode Brightness Contrast Saturation Sharpness Hue Mirror Angle Flip Back Light White Balance Shutter Time Exposure Defog 3D Noise Reduction |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams encode format | 3 Streams |
| Audio Streaming | Yes microphone with a distance up to 8m included |
| Protocols | TCP/IP UDP HTTP HTTPS DHCP FTP RTP/RTSP DNS DDNS NTP PPPOE UPNP SMTP SNMP P2P QR code |
| Intelligent Video IVS | Perimeter Intrusion Detection Face Recognition Human & Vehicle Detection Line Crossing Detection Stationary Object Detection Crossing Counting Heat Map Crowd Density Detection Queue Length Detection License Plate Detection Rare sound detection |
| Cloud option camera only | Dropbox |
| Software | Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code |
| Power Over Ethernet | Yes |
| Ethernet | Ethernet 10/100 Base-T |
| In The Box | Free Software available ivsecurity.com.au/support/software Printed quick user guide installation template mounting screws and plugs |
| Warranty | 3 Year Warranty |
