Moxa | 1 Port RS-232 Device Server, 0 To 60°C Operating Temperature.

  • Part: 2069726
$306.33

Availability

Out of Stock

#html-body [data-pb-style=OHS8VU3]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}

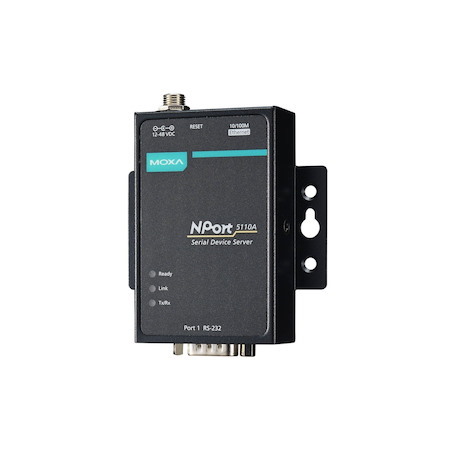

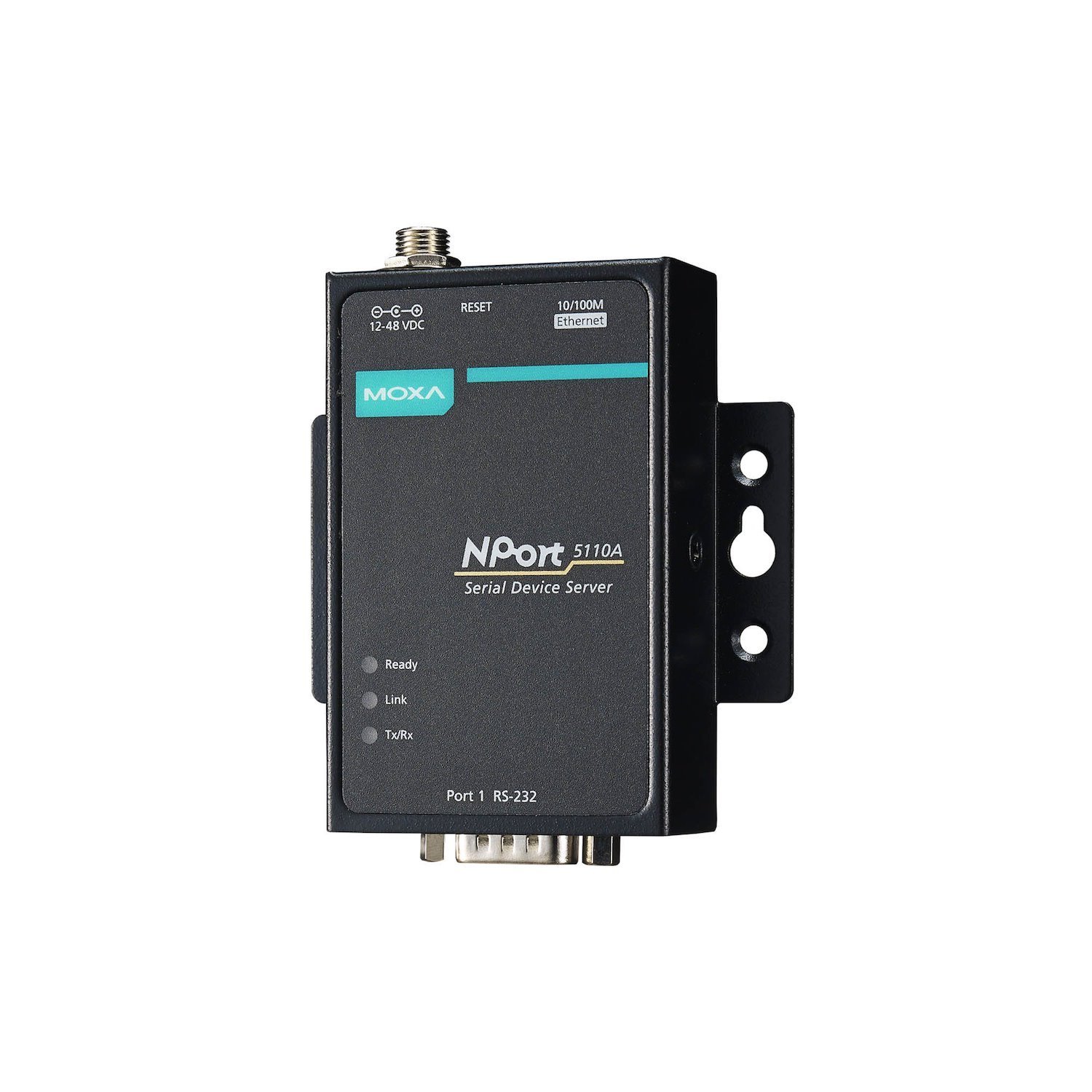

The Moxa NPort 5110A device server is engineered to make your serial devices network-ready in an instant. This ultra-lean, rugged, and user-friendly server provides a simple and reliable solution for connecting RS-232 serial devices to an Ethernet network, giving your PC software direct access from anywhere. Its compact design and robust features make it an ideal choice for a wide range of industrial applications where dependable connectivity is paramount.

A standout feature of the NPort 5110A is its exceptional energy efficiency. Powered by the MiiNe, a small but potent Arm-based serial-to-Ethernet SoC, its power consumption is less than 1W. This represents a power saving of at least 50% compared to many existing solutions, helping you meet modern environmental compliance challenges and reduce operational costs without sacrificing performance.

Built for harsh industrial environments, the NPort 5110A incorporates a leading-edge surge immunity solution. This state-of-the-art protection is applied to the serial, power, and Ethernet lines, and is tested and proven compliant with IEC 61000-4-5. This robust protection safeguards your valuable equipment from voltage spikes and electrically noisy conditions, ensuring maximum uptime and reliability.

Deployment and troubleshooting are made effortless. A fast 3-step web-based configuration tool allows users to complete the setup in an average of just 30 seconds, saving significant time and effort. For ongoing management, the device server supports SNMP for monitoring all units over Ethernet and can be configured to send automatic email alerts when user-defined errors are encountered, simplifying maintenance.

FEATURES

  • Ultra-low power consumption of only 1W
  • Fast 3-step web-based configuration
  • Surge protection for serial, Ethernet, and power lines
  • Real COM and TTY drivers for Windows, Linux, and macOS
  • Versatile TCP and UDP operation modes
  • Secure screw-type power connectors for reliable installation
  • Easy troubleshooting with SNMP and email alerts
  • COM port grouping and UDP multicast applications

SPECIFICATIONS

  • Serial Standards: RS-232
  • Serial Connector: DB9 male
  • No. of Ports: 1
  • Baudrate: 50bps to 921.6kbps
  • Ethernet Ports: 1 x 10/100BaseT(X) RJ45
  • Magnetic Isolation Protection: 1.5kV (built-in)
  • Input Voltage: 12 to 48VDC
  • Input Current: 82.5mA @ 12VDC
  • Housing: Metal
  • Weight: 340g
  • Dimensions (without ears): 52 x 80 x 22mm
  • Operating Temperature: 0 to 60°C
  • Installation: Desktop, Wall mounting, DIN-rail (with optional kit)

WARRANTY

5-Year Limited Warranty
