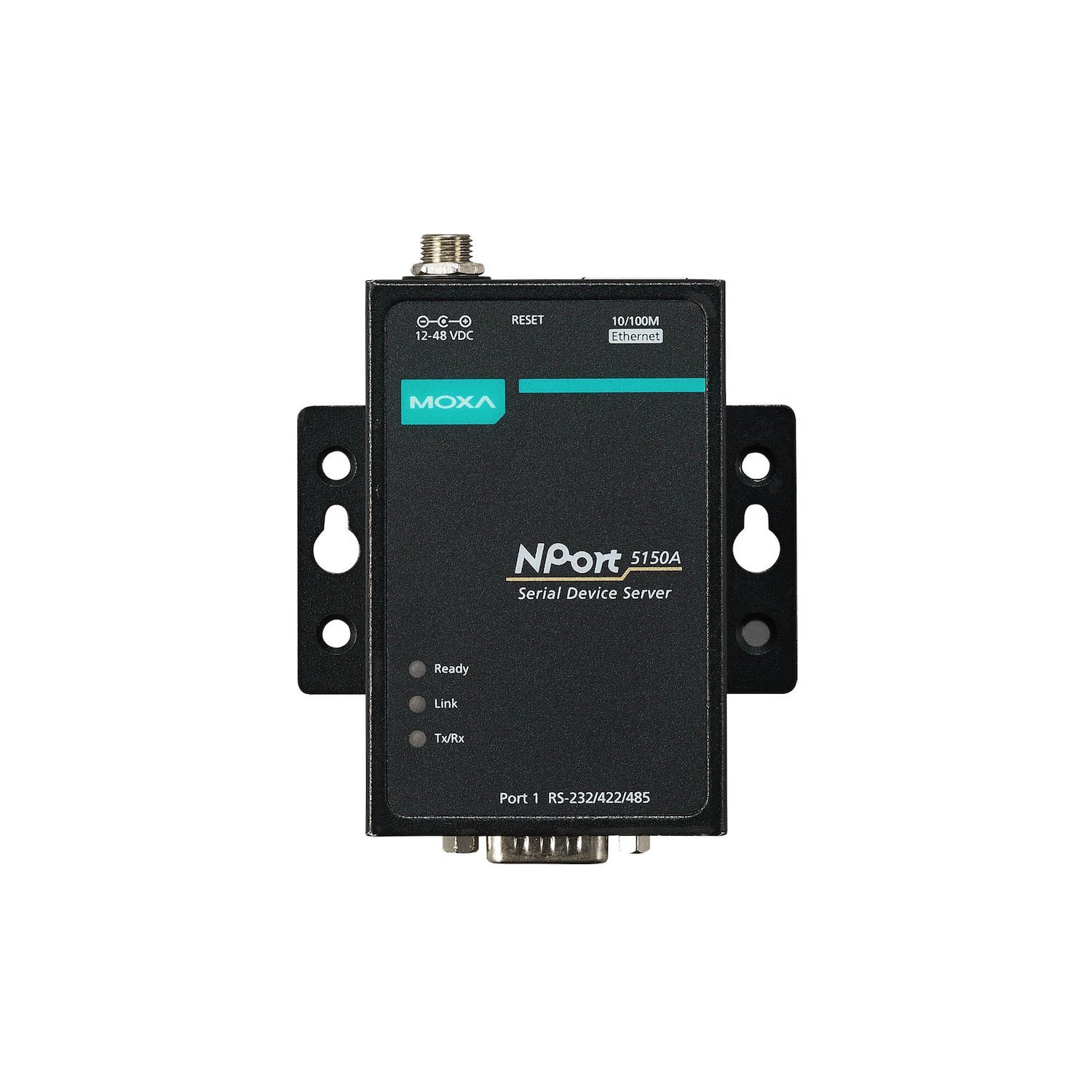

The Moxa NPort 5150A is a compact and powerful 1-port serial device server designed to instantly network-enable your industrial serial devices. This model offers exceptional flexibility with its 3-in-1 RS-232/422/485 interface, allowing you to connect any serial device to an IP-based Ethernet LAN. Whether you're upgrading legacy equipment or integrating new devices, the NPort 5150A provides a simple and reliable serial-to-Ethernet connectivity solution, giving your PC software direct access to serial devices from anywhere on the network.
Engineered for industrial environments, the NPort 5150A features a ruggedised metal housing and leading-edge surge protection for its serial, Ethernet, and power lines. This robust protection, compliant with IEC 61000-4-5, safeguards your valuable equipment against voltage spikes and electrically noisy conditions. The device is also incredibly energy-efficient, consuming less than 1W of power, which helps reduce operational costs and meet stringent environmental compliance standards without sacrificing performance.
Configuration is made effortless with a user-friendly, 3-step web-based configuration tool that allows for setup in an average of just 30 seconds. For advanced management and troubleshooting, the NPort 5150A supports SNMP for network monitoring and can be configured to send automatic email alerts for user-defined errors. With versatile TCP and UDP operation modes and Real COM/TTY drivers for Windows, Linux, and macOS, this device server delivers a powerful and adaptable solution for your connectivity needs.
FEATURES
- Extremely low power consumption of less than 1W
- Fast and simple 3-step web-based configuration
- Comprehensive surge protection for serial, Ethernet, and power lines
- Versatile TCP and UDP operation modes
- Supports up to 8 simultaneous TCP hosts
- COM port grouping and UDP multicast applications
- Real COM and TTY drivers for Windows, Linux, and macOS
- SNMP and email alerts for event monitoring and easy troubleshooting
SPECIFICATIONS
- Serial Interface: 1x DB9 Male connector
- Serial Standards: RS-232, RS-422, RS-485
- Ethernet Port: 1x RJ45 10/100BaseT(X)
- Magnetic Isolation: 1.5kV (built-in)
- Baud Rate: 50bps to 921.6kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS, DTR/DSR (RS-232 only), XON/XOFF
- Power Input: 12 to 48VDC
- Input Current: 92.4mA @ 12VDC
- Housing: Metal
- Dimensions (without ears): 52mm x 80mm x 22mm
- Weight: 340g
- Operating Temperature: 0 to 60°C
- Installation: Desktop, Wall mounting, DIN-rail (with optional kit)
WARRANTY
5-Year Limited Warranty
