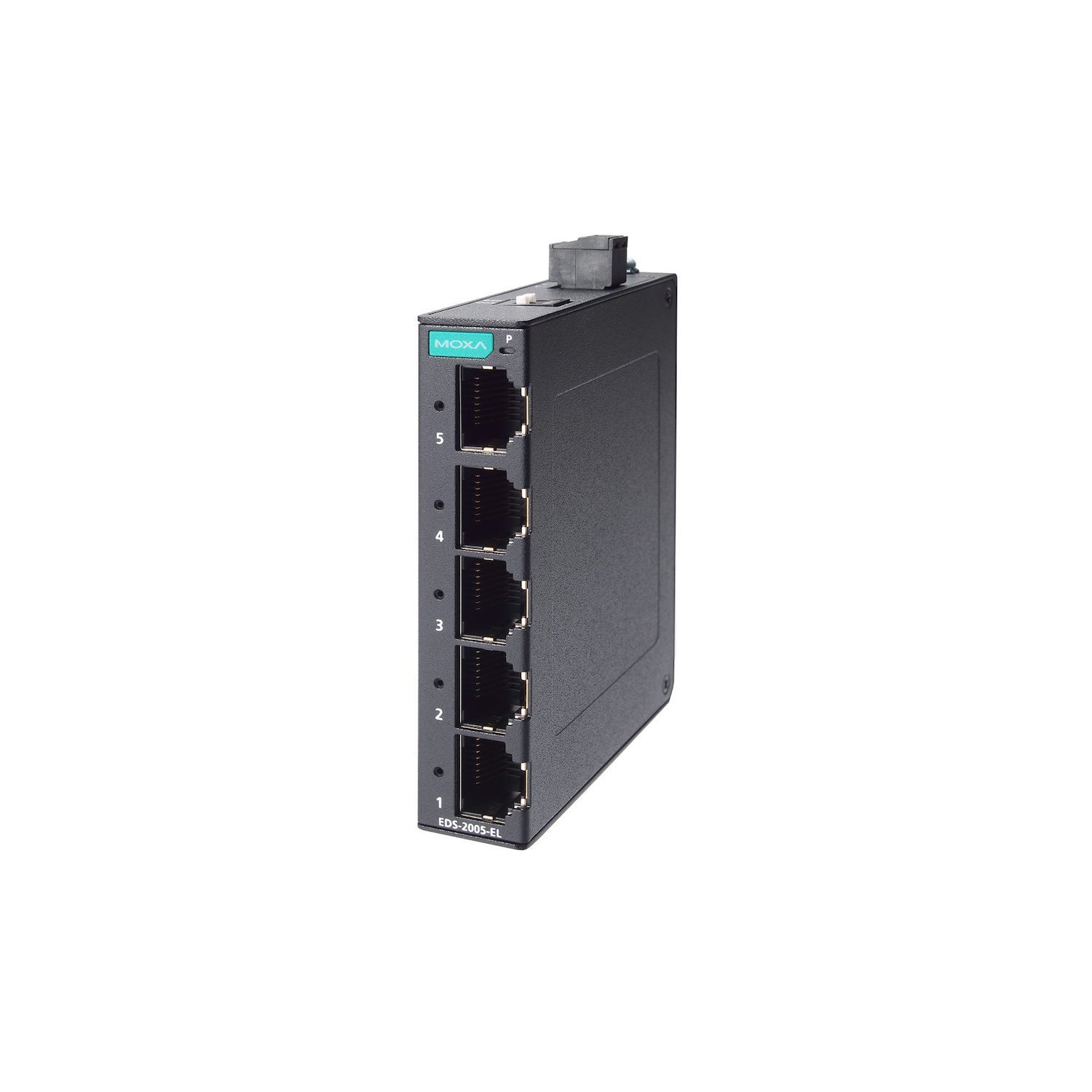

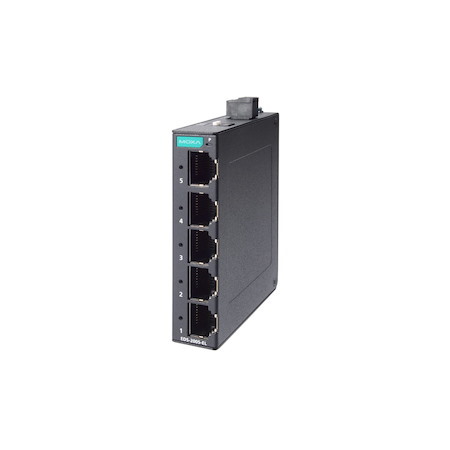

The Moxa EDS-2005-EL series is a robust, entry-level unmanaged Ethernet switch designed for industrial applications that demand simplicity and reliability. Featuring five 10/100M copper ports in a compact, IP40-rated metal housing, this switch is perfect for straightforward industrial network connections. It is built to withstand harsh environments, ensuring dependable performance where commercial switches would fail. The compact size allows for easy DIN-rail installation in crowded cabinets, making it a versatile choice for various industrial setups.
Enhancing its utility, the EDS-2005-EL series provides greater versatility through user-configurable settings. With easily accessible DIP switches on the outer panel, users can enable or disable Quality of Service (QoS) to prioritise critical data traffic and activate Broadcast Storm Protection (BSP) to prevent network slowdowns. This allows for simple network optimisation without needing complex software or configuration, making it ideal for environments where ease of use is paramount.
Engineered for industrial resilience, the EDS-2005-EL is built with a rugged metal housing and supports a single 12/24/48 VDC power input with reverse polarity protection. It has passed a 100% burn-in test to guarantee its long-term reliability post-deployment. The switch also features high-level EMI/EMC capabilities, ensuring stable operation in electrically noisy industrial settings. Its compliance with PROFINET Conformance Class A makes it a suitable component for modern PROFINET networks.
This series offers models for a variety of thermal conditions. The standard model operates reliably in temperatures from -10°C to 60°C, while the wide-temperature (-T) models are designed for extreme environments, functioning flawlessly in temperatures ranging from -40°C to 75°C. This operational flexibility ensures the EDS-2005-EL series is a dependable networking solution for any industrial challenge.
FEATURES
- 5 Ports: Features five 10/100BaseT(X) RJ45 ports.
- Industrial-Grade Housing: Housed in a rugged, IP40-rated metal case for durability.
- Compact Design: Small footprint allows for easy installation in tight spaces via DIN-rail or optional wall mount.
- User-Friendly Controls: Easily configure Quality of Service (QoS) and Broadcast Storm Protection (BSP) via external DIP switches.
- PROFINET Ready: Compliant with PROFINET Conformance Class A for seamless integration.
- Wide Temperature Range: Available in a wide-temperature model (-T) that operates from -40 to 75°C.
SPECIFICATIONS
- MAC Table Size: 2K
- Packet Buffer Size: 768 kbits
- Processing Type: Store and Forward
- Input Voltage: 12/24/48 VDC (9.6 to 60 VDC operating range)
- Input Current: 0.039A @ 24VDC
- Power Connection: 1 removable 2-contact terminal block
- Housing: Metal
- Dimensions: 18mm x 81mm x 65mm
- Weight: 113.5g
- Installation: DIN-rail mounting (optional wall mount kit available)
- Operating Temperature (Standard): -10 to 60°C
- Operating Temperature (-T Model): -40 to 75°C
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- MTBF: 5,249,061 hrs
WARRANTY
5-Year Limited Warranty
