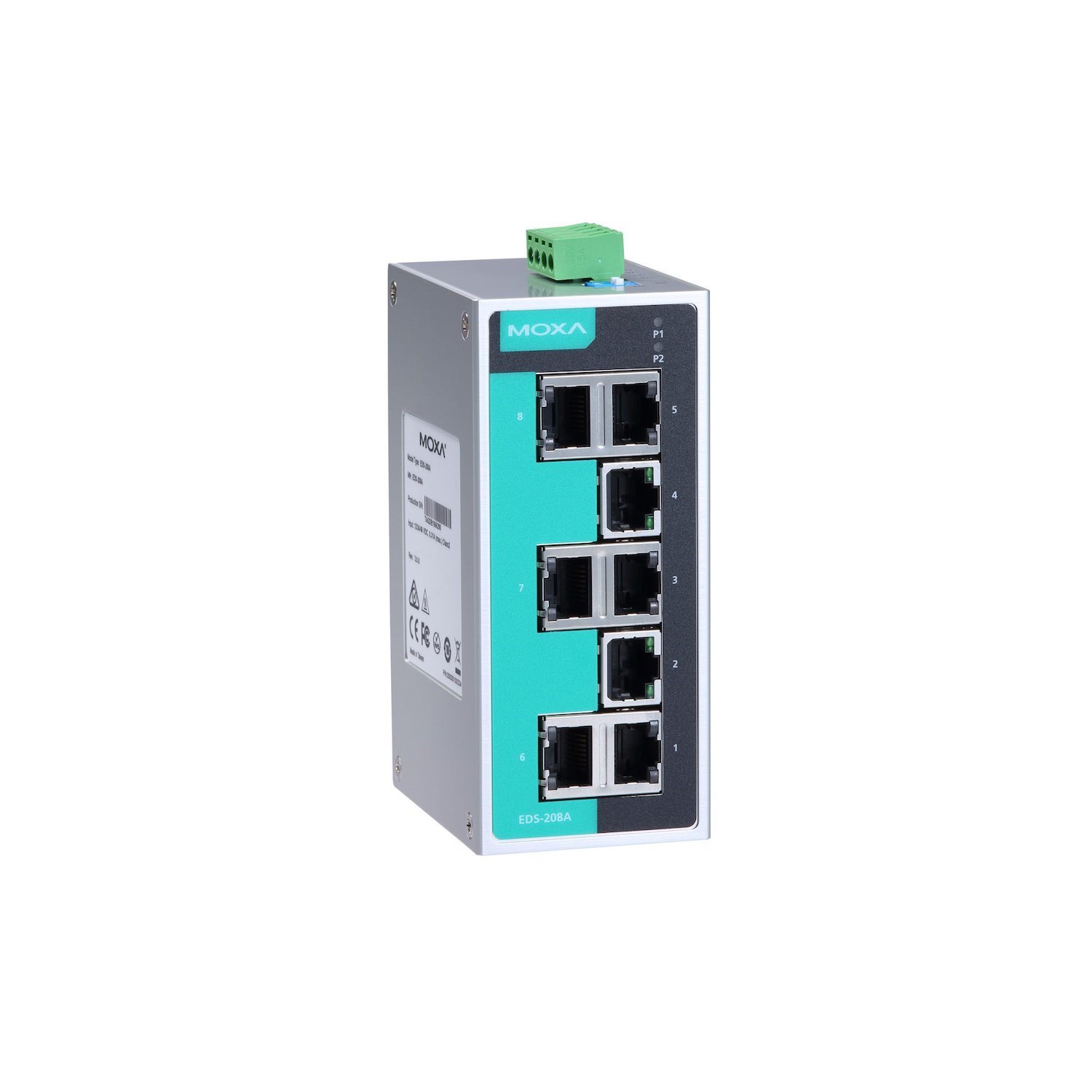

The Moxa EDS-208A is an 8-port industrial Ethernet switch designed for robust and reliable network connectivity in harsh environments. It supports IEEE 802.3 and IEEE 802.3u/x standards with 10/100M full/half-duplex and MDI/MDI-X auto-sensing, ensuring seamless integration into your industrial automation control applications. This entry-level unmanaged switch is built to withstand demanding conditions, making it an ideal choice for a wide range of industrial settings.
Engineered for stability, the EDS-208A series features redundant dual 12/24/48VDC power inputs, minimising the risk of downtime due to power supply failure. The durable IP30 aluminium housing provides protection, and the switch is designed to operate in a standard temperature range of -10 to 60°C. For more extreme conditions, a wide-temperature model (-40 to 75°C) is also available, ensuring consistent performance where it matters most.
Installation is straightforward with DIN-rail mounting capability, allowing for quick and easy integration into your existing setup. To enhance network stability, the EDS-208A includes a selectable broadcast storm protection feature, which can be enabled or disabled via a DIP switch, providing an additional layer of reliability for your industrial network.
FEATURES
- 10/100BaseT(X) (RJ45 connector)
- Redundant dual 12/24/48 VDC power inputs
- IP30 aluminium housing
- Rugged hardware design
- -10 to 60°C operating temperature range
- Broadcast storm protection
- DIN-rail mounting capability
SPECIFICATIONS
- MAC Table Size: 2K
- Packet Buffer Size: 768kbits
- Processing Type: Store and Forward
- Input Voltage: 12/24/48VDC, Redundant dual inputs
- Operating Voltage: 9.6 to 60VDC
- Input Current: 0.11A @ 24VDC
- Connection: 1 removable 4-contact terminal block(s)
- Housing: Aluminium
- IP Rating: IP30
- Dimensions: 50 x 114 x 70mm
- Weight: 275g
- Installation: DIN-rail mounting
- Operating Temperature: -10 to 60°C
- Safety Standards: UL 508
WARRANTY
5-Year Limited Warranty
