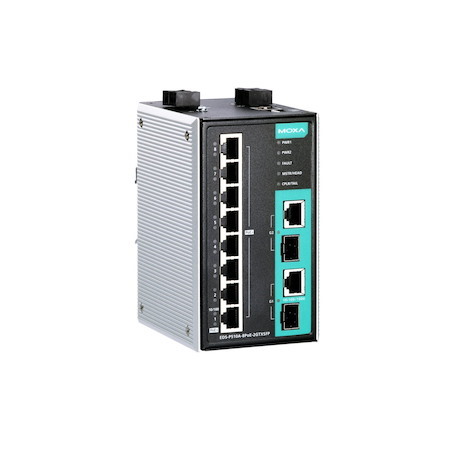

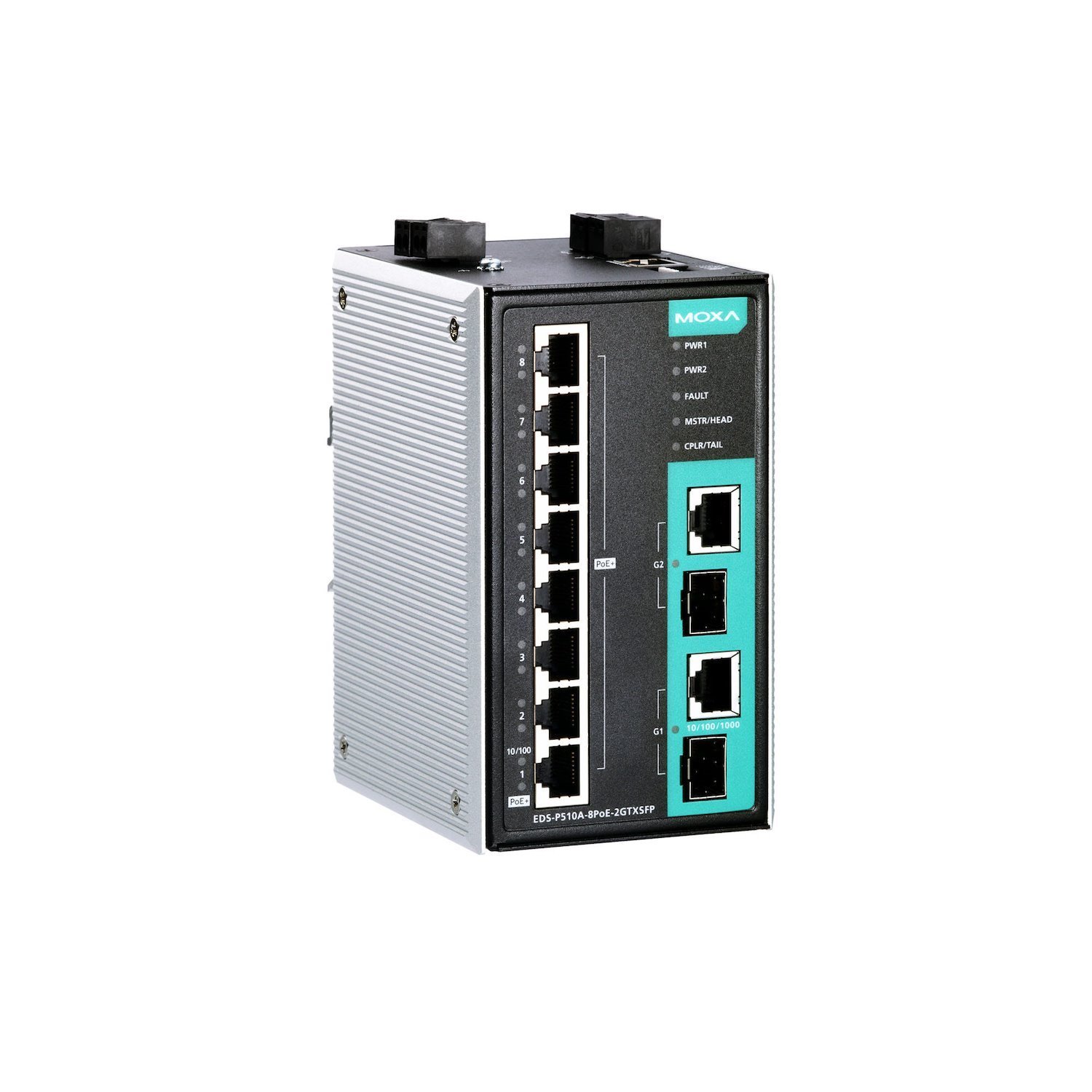

The Moxa EDS-P510A-8PoE-2GTXSFP is a rugged managed Ethernet switch designed for demanding industrial environments. It provides eight 10/100BaseT(X) ports compliant with IEEE 802.3af/at PoE+ standards, capable of delivering up to 36W of power per port. This high-power output is ideal for sophisticated devices such as IP surveillance cameras with heaters or wipers, high-performance wireless access points, and industrial IP phones, all supported by a total power budget of 240W.
Engineered for versatility and high performance, the switch includes two Gigabit combo ports that can be used for high-bandwidth copper or long-distance fibre optic uplinks with SFP modules. This flexibility allows data transmission up to 120km, ensuring reliable connectivity between the device and a central control centre, even in environments with high electromagnetic interference. The robust metal housing and IP30 rating ensure durability and reliable operation in harsh conditions.
This switch is equipped with a comprehensive suite of management functions to ensure maximum network reliability and security. It supports advanced redundancy protocols like Moxa’s Turbo Ring and Turbo Chain, which offer millisecond-level network recovery. For enhanced security, it includes features such as IEEE 802.1X, HTTPS, and SSH. Built-in 3kV LAN surge protection and an operating temperature range of -10 to 60°C make it a dependable choice for outdoor and critical industrial applications.
Management is streamlined through a command-line interface (CLI) and support for industrial protocols like EtherNet/IP and Modbus TCP, allowing for easy integration and monitoring within existing automation systems. Smart PoE functions, including diagnostics and power scheduling, enhance operational efficiency and simplify troubleshooting, making the EDS-P510A-8PoE-2GTXSFP a powerful and intelligent networking solution for any industrial setup.
FEATURES
- 8 IEEE 802.3af/at compliant PoE+ ports
- High power output of up to 36W per PoE+ port
- 2 Gigabit combo ports for flexible fibre or copper uplinks
- 3kV LAN surge protection for harsh outdoor environments
- Advanced PoE diagnostics for device monitoring and analysis
- Supports Moxa Turbo Ring and Turbo Chain for fast network redundancy (<20ms)
- Command-line interface (CLI) for rapid configuration
- Supports EtherNet/IP and Modbus TCP for industrial automation integration
SPECIFICATIONS
- PoE Ports: 8 x 10/100BaseT(X) RJ45
- Combo Ports: 2 x 10/100/1000BaseT(X) or 100/1000BaseSFP+
- PoE Standards: IEEE 802.3af/at
- PoE Power Output: Up to 36W per port
- Total PoE Power Budget: 240W
- Input Voltage: 48VDC (44 to 57VDC), redundant dual inputs
- Housing: Metal
- IP Rating: IP30
- Installation: DIN-rail mounting, Wall mounting (optional kit)
- Operating Temperature: -10 to 60°C
- Dimensions: 79.2mm x 135mm x 105mm
- MAC Table Size: 8K
- Security Protocols: HTTPS/SSL, Port Lock, RADIUS, TACACS+, SSH, IEEE 802.1X
- Redundancy Protocols: STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain
- Industrial Protocols: EtherNet/IP, Modbus TCP
WARRANTY
5-Year Limited Warranty
