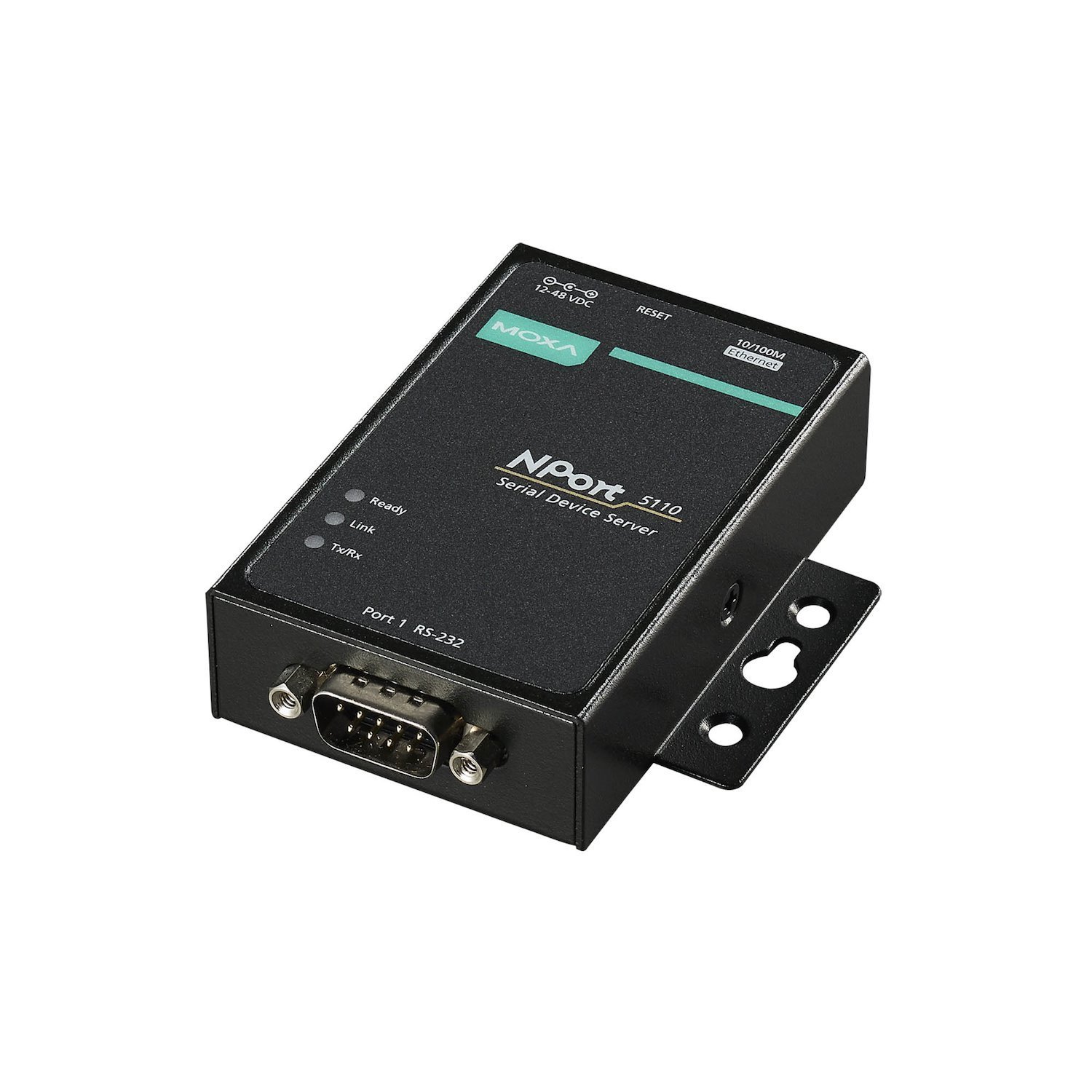

Moxa | NPort 5110 | 1 Port RS-232 Device Server | 0 To 55°C Operating Temperature

  • Part: 2030140
$289.09

Availability

Out of Stock

#html-body [data-pb-style=F691SE3]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}

The Moxa NPort 5110 is a compact and cost-effective 1-port RS-232 serial device server designed to instantly network your serial devices. Its small form factor makes it ideal for connecting devices like card readers and payment terminals to an IP-based Ethernet LAN. This reliable device server supports a standard TCP/IP interface and offers versatile operation modes, ensuring compatibility with various network software. With easy installation and configuration, the NPort 5110 allows seamless communication between your PC software and serial devices from anywhere on the network.

FEATURES

  • Cost-effective 1-port RS-232 serial-to-Ethernet solution
  • Compact size for easy installation
  • Standard TCP/IP interface with versatile operation modes (TCP Server, TCP Client, UDP Server/Client, Pair Connection, Ethernet Modem)
  • Real COM/TTY drivers provided for Windows and Linux, allowing use of existing serial communication software
  • Easy-to-use Windows utility for configuring multiple device servers

SPECIFICATIONS

  • Serial Interface: 1 x RS-232
  • Connector: DB9 male
  • Ethernet Interface: 1 x 10/100BaseT(X) RJ45 port
  • Operation Modes: TCP Server, TCP Client, UDP Server/Client, Pair Connection, Ethernet Modem, Real COM, Reverse Telnet
  • Baudrate: 110bps to 230.4kbps
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
  • Network Protocols: TCP/IP, UDP, DHCP Client, BootP, HTTP, SNMPv1, DNS, Telnet, ARP, ICMP
  • Management: Web Console (HTTP), Telnet, Serial Console, Windows Utility
  • Power Input: 12 to 48VDC via power jack
  • Operating Temperature: 0 to 55°C
  • Storage Temperature: -40 to 75°C
  • Dimensions: 52 x 80 x 22mm (without ears)
  • Weight: 340g

WARRANTY

5-Year Limited Warranty
