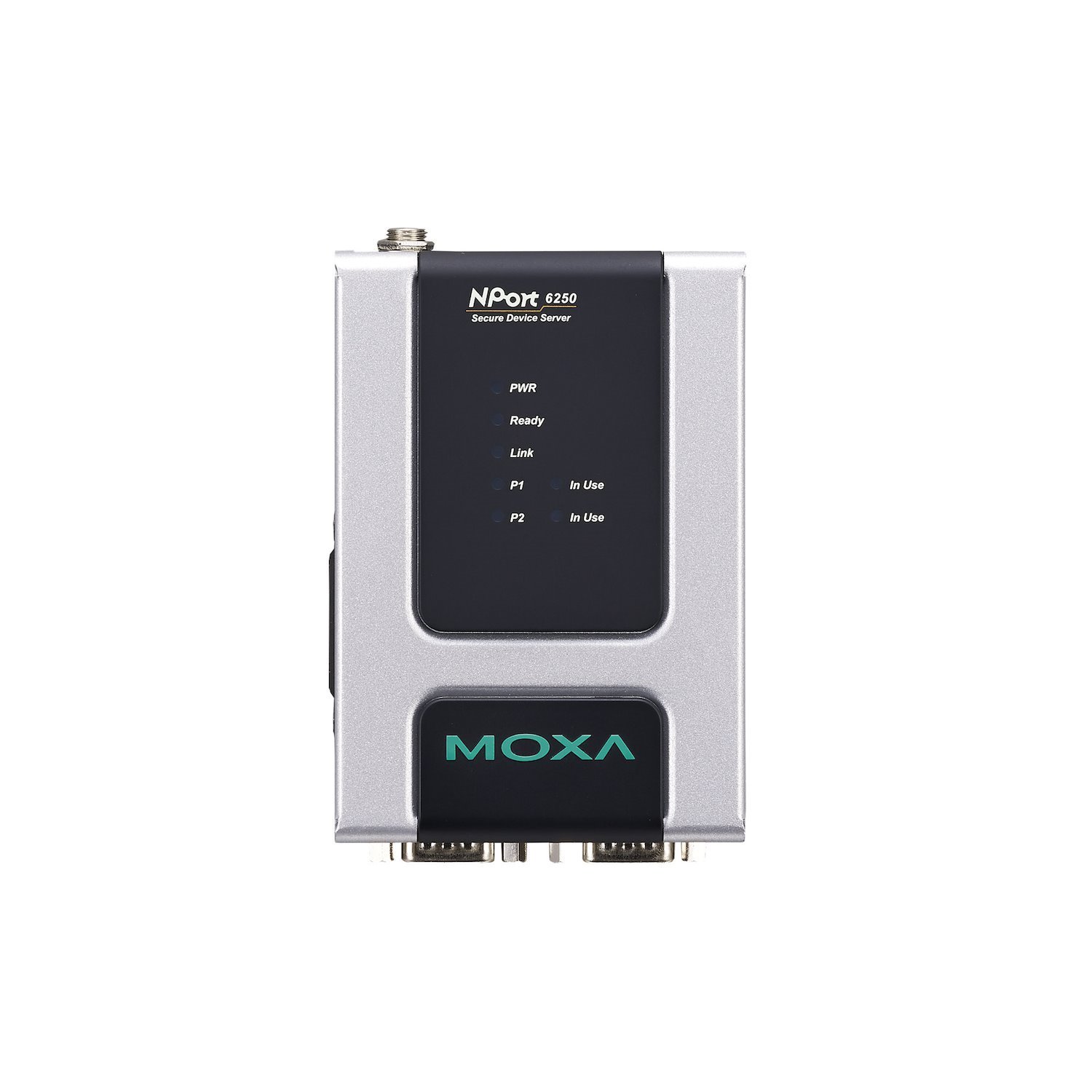

The Moxa NPort 6250-S-SC is a secure and reliable 2-port serial device server designed for industrial applications. It allows you to connect your RS-232/422/485 serial devices to an Ethernet network using a single-mode fibre connection with an SC connector. This ensures robust and long-distance data transmission, even in electrically noisy environments. The NPort 6250-S-SC offers secure operation modes such as Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal, along with enhanced remote configuration via HTTPS and SSH for secure management.

FEATURES

• 2 RS-232/422/485 ports
• Single-mode fibre interface with SC connector for long-distance and noise-immune communication
• Secure operation modes: Real COM, TCP Server, TCP Client, Pair Connection, Terminal, Reverse Terminal
• Enhanced remote configuration via HTTPS and SSH
• Port buffers to prevent data loss during Ethernet connection failures
• Supports non-standard baudrates with high precision
• Security features based on IEC 62443

SPECIFICATIONS

• Serial Interface: 2 x RS-232/422/485 ports, DB9 male connectors
• Fibre Interface: 1 x 100BaseFX single-mode, SC connector
• Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS/CTS, XON/XOFF
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
• Terminator for RS-485: 120 ohms
• Ethernet: 1 x 10/100BaseT(X)
• Operating Temperature: 0 to 55°C
• Input Voltage: 12 to 48VDC
• Power Consumption: 430mA @ 12 to 48VDC
• Housing: Metal
• Dimensions: 77mm x 111mm x 29mm (without ears), 101mm x 111mm x 29mm (with ears)
• Weight: 240g
• Installation: Desktop, Wall mounting (optional DIN-rail mounting kit available)

WARRANTY

5-Year Limited Warranty
