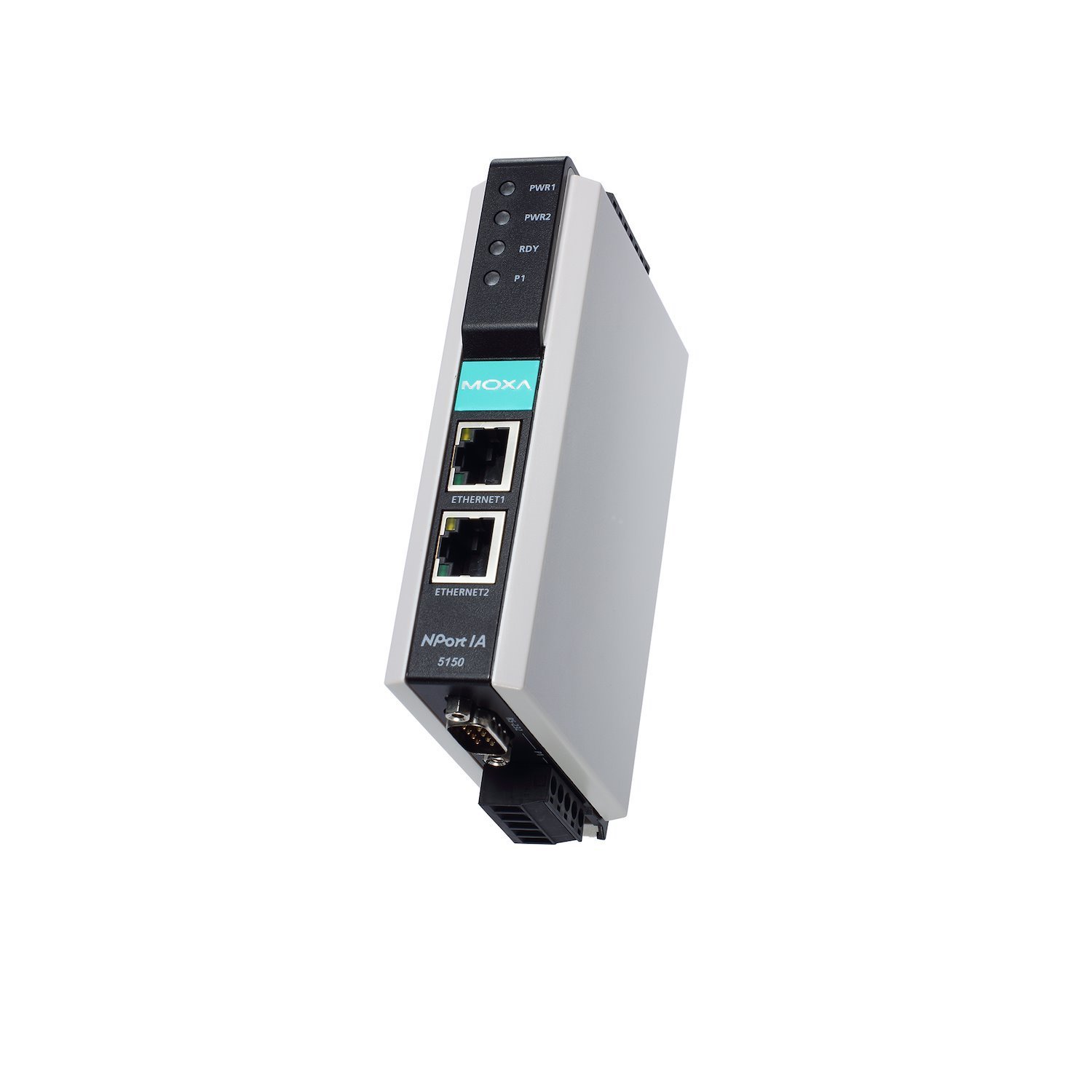

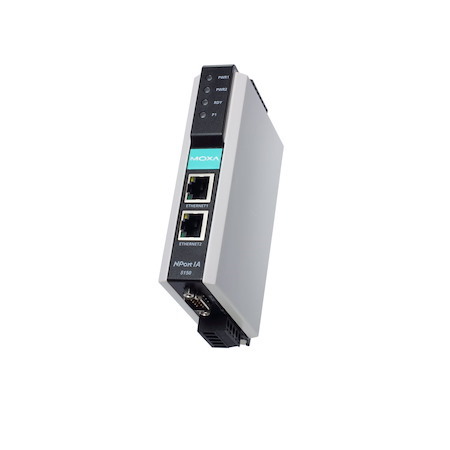

The Moxa NPort IA-5150 is a robust and reliable 1-port RS-232/422/485 serial device server designed for industrial automation applications. This server allows you to easily connect your serial devices, such as PLCs, sensors, and meters, to an Ethernet network. Featuring dual 10/100BaseT(X) Ethernet ports with a single IP address for easy cascading, it simplifies network setup. The NPort IA-5150 boasts enhanced surge protection and is certified for use in hazardous locations, including rolling stock and wayside environments, ensuring dependable operation in demanding conditions.
FEATURES
- 1-port RS-232/422/485 serial interface
- Dual 10/100BaseT(X) Ethernet ports with single IP for cascading
- Redundant DC power inputs (12 to 48VDC) for continuous operation
- Wide operating temperature range of 0 to 60°C (standard model) or -40 to 75°C (T model)
- IP30-rated plastic housing for robust protection
- DIN-rail mounting for easy installation
SPECIFICATIONS
- Serial Interface: 1 x RS-232/422/485 (DB9 male for RS-232, terminal block for RS-422/485)
- Ethernet Interface: 2 x 10/100BaseT(X) (RJ45 connectors)
- Baudrate: 110 to 230400 bps
- Data Bits: 5, 6, 7, 8
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
- Flow Control: RTS/CTS (RS-232), DTR/DSR (RS-232), XON/XOFF
- RS-485 Terminator: 120 ohms (selectable)
- RS-485 Pull High/Low Resistor: 1 kilo-ohm, 150 kilo-ohms (selectable)
- Power Input: 12 to 48 VDC (redundant inputs)
- Power Connector: Terminal block
- Housing: Plastic
- IP Rating: IP30
- Dimensions: 29 x 89.2 x 118.5 mm
- Weight: 360g
- Operating Temperature: 0 to 60°C (NPort IA-5150), -40 to 75°C (NPort IA-5150-T)
- Storage Temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
WARRANTY
1-Year Limited Warranty
