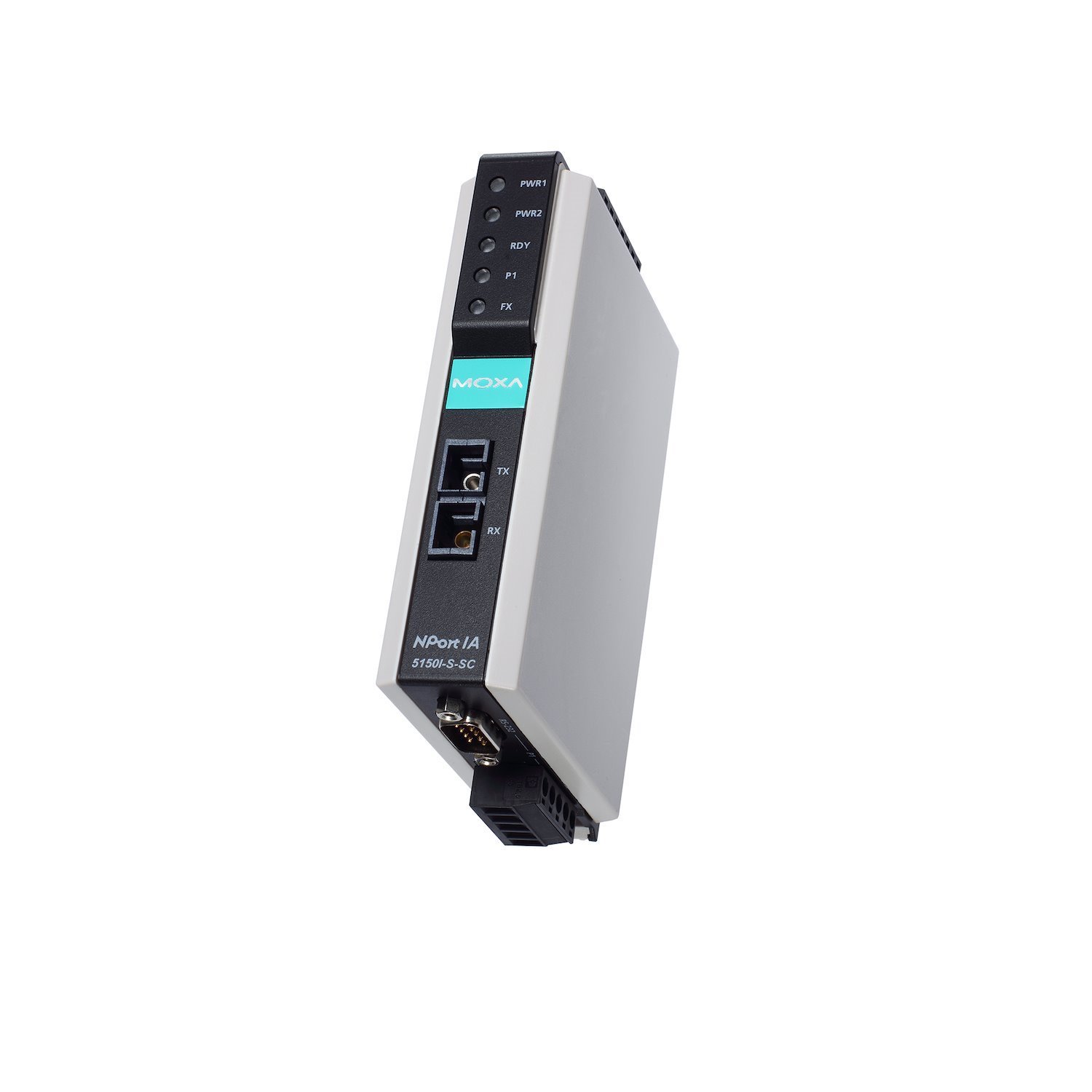

The Moxa NPort IA-5150-S-SC is a robust and reliable 1-port serial device server specifically designed for industrial automation applications. This server provides seamless conversion of RS-232/422/485 serial signals to 10/100BaseT(X) Ethernet and features a 100BaseFX single-mode fibre port with an SC connector, ensuring dependable data transmission over extended distances and in environments prone to electromagnetic interference. Its dual Ethernet ports with cascading functionality simplify wiring and reduce costs by allowing daisy-chain connections. The NPort IA-5150-S-SC boasts dual redundant DC power inputs and relay output warnings, enhancing system uptime and reliability in critical industrial settings. With a wide operating temperature range of 0 to 60°C, it is suitable for various demanding industrial environments.
FEATURES
- 1-port RS-232/422/485 serial device server
- 1 x 100BaseFX single-mode fibre port with SC connector for long-distance, noise-immune communication
- 2 x 10/100BaseT(X) Ethernet ports with 1.5kV magnetic isolation protection, supporting Ethernet cascading for simplified wiring
- Redundant 12 to 48VDC power inputs for continuous operation
- Relay output for event warnings and alerts
- Supports TCP Server, TCP Client, and UDP socket modes
- Patented ADDC (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
- DIN-rail mounting for easy installation in industrial cabinets
SPECIFICATIONS
- Serial Interface: 1 x RS-232/422/485 port (DB9 male for RS-232, terminal block for RS-422/485)
- Ethernet Interface: 2 x 10/100BaseT(X) RJ45 ports
- Fibre Interface: 1 x 100BaseFX single-mode, SC connector
- Fibre Type: Single-mode (G.652)
- Typical Distance (Single-mode Fibre): Up to 40km
- Wavelength (Single-mode Fibre): 1310nm (Typical), TX Range: 1280 to 1340nm, RX Range: 1100 to 1600nm
- Max. Baudrate: 230.4kbps
- Data Bits: 5, 6, 7, 8
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
- Flow Control: RTS/CTS (RS-232), DTR/DSR (RS-232), XON/XOFF
- Power Input: 12 to 48VDC (redundant dual inputs via terminal block)
- Input Current: 555mA @ 12VDC
- Isolation: 1.5kV magnetic isolation for Ethernet
- Operating Temperature: 0 to 60°C
- Storage Temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- Housing: Plastic, IP30 rated
- Mounting: DIN-rail
- Dimensions: 29mm x 89.2mm x 118.5mm
- Weight: 360g
WARRANTY
1-Year Limited Warranty
