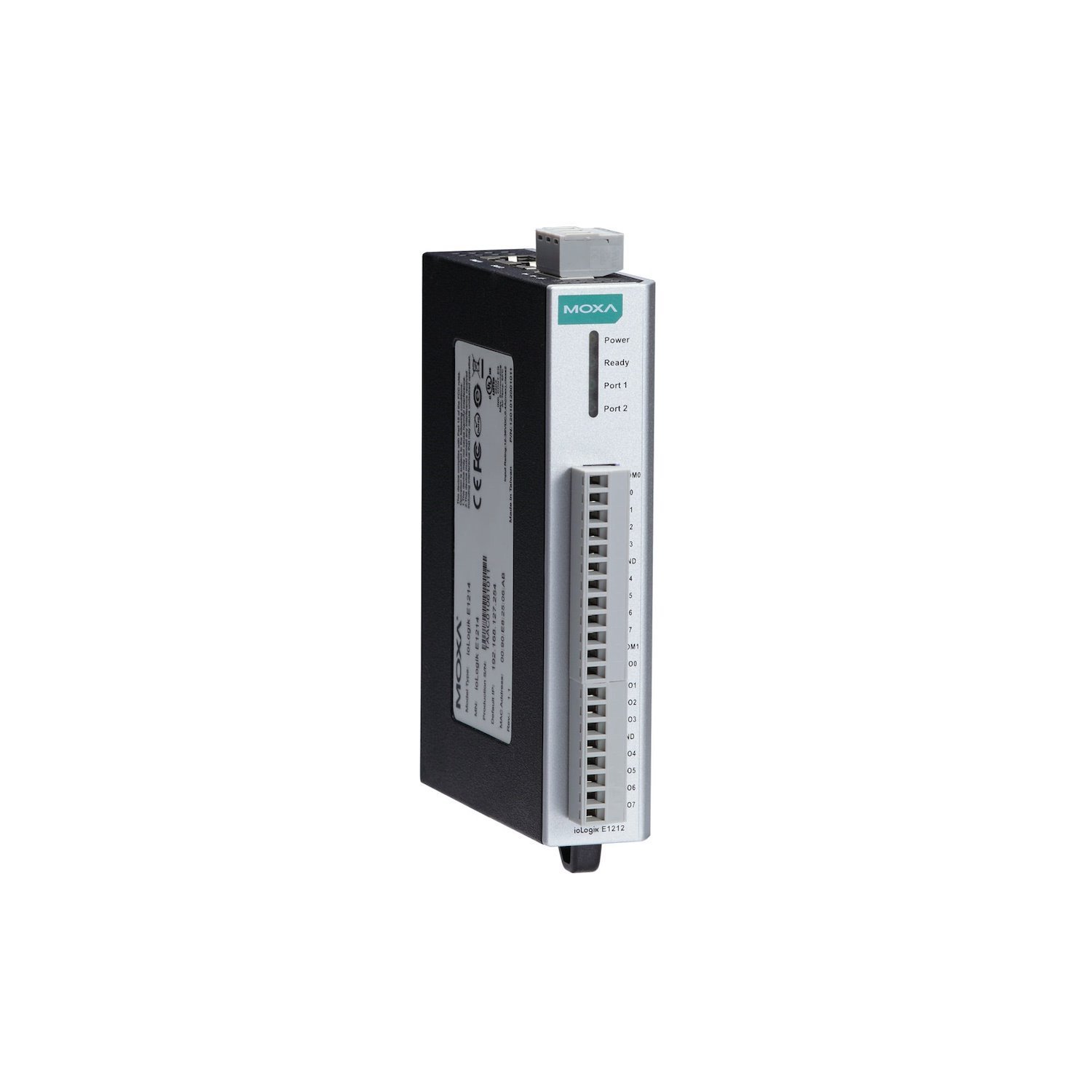

The Moxa ioLogik E1210 is a high-performance Ethernet remote I/O module designed to provide robust and versatile data acquisition for industrial applications. Equipped with 16 digital input channels, this device is perfect for monitoring sensors, switches, and other digital signals in your automation system. The ioLogik E1210 stands out with its integrated 2-port Ethernet switch, which facilitates daisy-chain topologies. This innovative design simplifies network infrastructure by reducing the need for separate Ethernet switches, leading to significant savings on wiring, installation time, and overall costs.
Engineered to bridge the communication gap between operational technology (OT) and information technology (IT), the ioLogik E1210 supports a wide array of protocols simultaneously. OT engineers can seamlessly integrate the device into SCADA systems using familiar protocols like Modbus TCP and EtherNet/IP. At the same time, IT professionals can retrieve data using SNMP or RESTful API, making it a truly convergent solution for modern IIoT applications. This multi-protocol capability ensures that data from a single device can be accessed by different systems without complex converters.
Ease of use and deployment are central to the ioLogik E1210's design. The device can be quickly configured through a user-friendly web browser, eliminating the need for specialised software. For larger-scale deployments, the ioSearch utility simplifies mass configuration and management. Furthermore, features like user-definable Modbus TCP addressing make upgrading existing systems a straightforward process. The E1210 also supports active push communications with the MX-AOPC UA Server, which enhances data accuracy and reduces network traffic by only sending updates when events occur.
FEATURES
- 16 digital input channels for comprehensive monitoring
- Integrated 2-port Ethernet switch for cost-saving daisy-chain topologies
- Supports multiple protocols simultaneously: Modbus TCP, EtherNet/IP, SNMP, and RESTful API
- User-definable Modbus TCP slave addressing for easy system integration
- Active push communication with MX-AOPC UA Server for efficient event reporting
- Simple configuration and management via a standard web browser
- Supports peer-to-peer communications to reduce wiring costs
- Mass deployment and configuration with the free ioSearch utility
SPECIFICATIONS
- Digital Input Channels: 16
- Sensor Type: Dry contact, Wet contact (NPN or PNP)
- Wet Contact (On-State): 10 to 30VDC
- Wet Contact (Off-State): 0 to 3VDC
- Counter Frequency: 250Hz
- Ethernet Ports: 2 x 10/100BaseT(X) RJ45
- Magnetic Isolation: 1.5kV (built-in)
- Industrial Protocols: Modbus TCP Server, EtherNet/IP Adapter, Moxa AOPC, MXIO Library
- Management Protocols: SNMPv1/v2c, RESTful API, HTTP
- Power Input: 12 to 36VDC
- Power Consumption: 110mA @ 24VDC
- Housing: Plastic
- Dimensions: 27.8mm x 124mm x 84mm
- Weight: 200g
- Installation: DIN-rail or wall mounting
- Operating Temperature: -10 to 60°C
- MTBF: 671,345 hrs
WARRANTY
5-Year Limited Warranty
