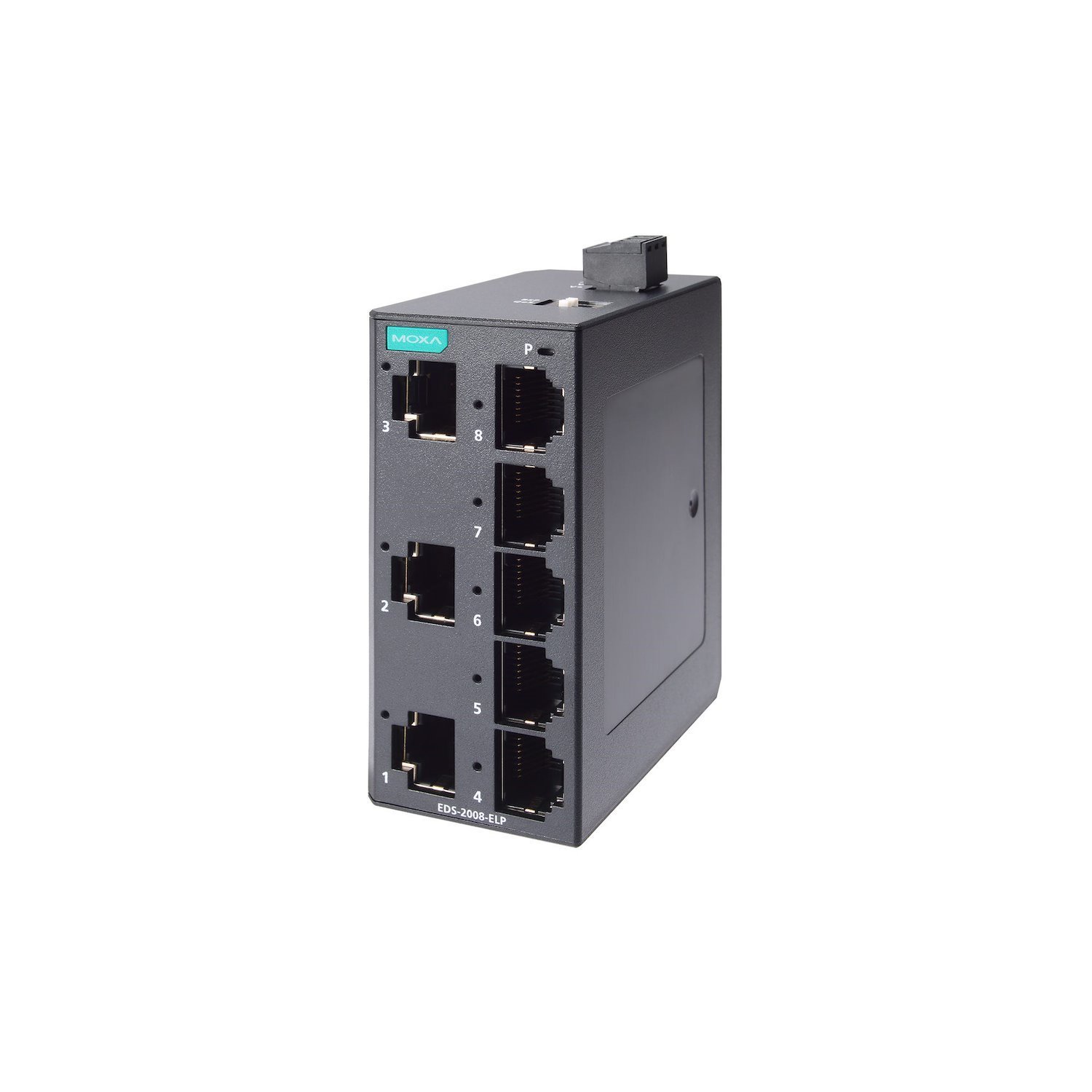

The Moxa EDS-2008-ELP is an entry-level unmanaged Ethernet switch designed for reliability and simplicity in industrial applications. Featuring eight 10/100M copper ports, this switch provides a straightforward solution for expanding your network connections. Its compact, IP40-rated plastic housing allows for easy installation on a standard DIN-rail, making it an ideal choice for control cabinets and other space-constrained environments where basic industrial Ethernet connectivity is required.
To enhance network performance and stability, the EDS-2008-ELP series includes user-configurable features that are rare in entry-level switches. Using simple DIP switches on the outer panel, you can enable Quality of Service (QoS) to prioritise critical data traffic and activate Broadcast Storm Protection (BSP) to prevent network slowdowns caused by excessive broadcast packets. This functionality ensures that important data is handled efficiently, even under heavy network load.
Built for the demands of industrial settings, the EDS-2008-ELP supports a single 12/24/48VDC power input and boasts high-level EMI/EMC capabilities for stable operation in electrically noisy environments. Each unit undergoes a 100% burn-in test to guarantee its reliability after deployment and is rated for an operating temperature range of -10 to 60°C. Furthermore, its compliance with PROFINET Conformance Class A makes it a dependable choice for integration into PROFINET automation networks.
FEATURES
- 8 x 10/100BaseT(X) RJ45 ports
- Compact size for easy DIN-rail installation
- QoS supported to process critical data in heavy traffic
- Broadcast Storm Protection (BSP) to maintain network stability
- User-configurable QoS and BSP via external DIP switches
- IP40-rated plastic housing
- PROFINET Conformance Class A compliant
- 12/24/48VDC single power input
SPECIFICATIONS
- Processing Type: Store and Forward
- MAC Table Size: 2K
- Packet Buffer Size: 768kbits
- Standards: IEEE 802.3 for 10BaseT, IEEE 802.1p for Class of Service, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control
- Input Voltage: 12-48VDC
- Operating Voltage: 9.6 to 60VDC
- Input Current: 0.057A @ 24VDC
- Protection: Overload Current Protection, Reverse Polarity Protection
- Housing: Plastic
- Dimensions: 36mm x 81mm x 65mm
- Weight: 110.5g
- Installation: DIN-rail mounting
- Operating Temperature: -10 to 60°C
- MTBF: 3,696,394 hrs
WARRANTY
5-Year Limited Warranty
