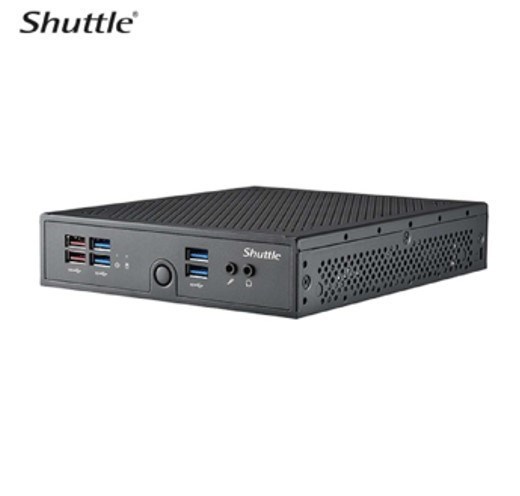

Shuttle XPC SLIM Barebone - Core i5-1335U (15W), 2x DDR5, 2x M.2 2280, HDMI, DP, VGA, COM, 2 x LAN, (5G LTE optional), 90W, fanless, Efficient 1-Liter Fanless PC | Harness 13th Gen Raptor Lake-U Power Shuttle's latest fanless model, the DS50U, supports the cutting-edge 13th Gen Intel® Raptor Lake-U processor, and enables dual-channel up to DDR5-5200 memory. With Iris® Xe or UHD integrated graphics based on processor SKUs, the DS50U can enhance multitask performance and handle a variety of digital applications effortlessly. Despite its compact 1-liter volume, this device features a rich array of I/O connectors, including eight USB ports, SATA 3.0, dual M.2 slots, and one M.2 E slot for expandability, enabling users to install various peripherals. Additionally, it supports triple displays via HDMI 2.0b, DisplayPort, and VGA. The DS50U is well-suited for a wide range of business applications, including IoT gateways, smart digital signage, automation control, edge computing, interactive kiosks, and more. FORM FACTOR Shuttle 1.3L Chassis PROCESSOR Intel Raptor Lake -U series MEMORY 2 x 262 pin DDR5 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR5 up to 5200Mhz VIDEO OUTPUT (1)HDMI 2.0b + (1)DisplayPort 1.4 + (1) VGA video outputs Support triple independent display AUDIO Realtek ALC888S 2 channel High Definition Audio ETHERNET (1)Intel GbE Lan / (1)Intel 2.5 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function Support Teaming function STORAGE INTERFACE SATA for HDD/SSD ONBOARD CONNECTORS (1) 2.5 inch SATA connector (1) USB2.0 header (1) Auto Power on Jumper (1) RS232 voltage switch (1) External 4 pin header FRONT PANEL (1) Power on button (1) Power LED (1) HDD LED (2) USB 3.2 Gen2 (4) USB 3.2 Gen1 (1) Mic in (1) Headphone out BACK PANEL (2) RJ45 LAN (1) HDMI (1) DisplayPort (1) VGA (1) RS232/RS422/RS485 (2) USB 2.0 (1) External 4 pin header (Clear CMOS/Power Switch/5V) (1) DC-in (1) Kensington lock (2) Antenna fixture DRIVE BAYS (1) 2.5' HDD / SSD bay POWER 90W 19V Adapter bundled Input:100- 240V AC ACCESSORIES XPC Multilanguage Quick User Guide XPC DVD Driver Food stand VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 90W adapter EXPANSION SLOT (2) M.2 2280 Type M key socket (1) M.2 2230 Type E Key socket OS SUPPORT Windows 11, Linux GRAPHICS Integrated Intel® Iris® Xe (Feature depends on processor) CERTIFICATION Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI , UKCA OPERATING TEMPERATURE 0℃~40℃
