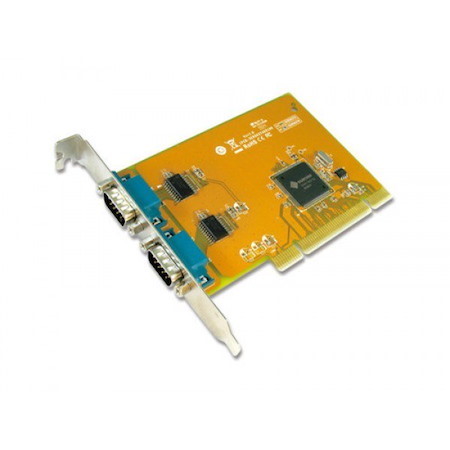

Sunix Comcard-2P Ser5037a Dual Port Serial Io Card Pci Card; Speeds Up To 115.2Kbps; Support Microsoft Windows, Linux, And Dos(L)

  • Part: 1702163
$22.00

Availability

In Stock

Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS Description Product Description 2-port RS-232 Universal PCI Serial Board Serial Communication Interface RS-232 Controller SUNIX SUN1989 (16C950 UART Compatible) Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 No. of Port 2-port IRQ & IO Assigned by System FIFO 128 byte (Hardware) Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI Baud rate 50 bps to 115.2 Kbps Data bit 5,6,7,8 Stop bit 1,1.5,2 Parity None, Even, Odd, Space, Mark Flow Control None, Xon/Xoff, RTS/CTS Protection ±2KV ESD protection for each signal Human Body Model (HBM) PCB connector DB9 Male Driver Support Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64) Windows Server 2003 / 2008 / 2012 / 2016 (X64) Windows Embedded Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 Linux Linux 2.x / 3.x / 4.x DOS DOS FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4 QNX QNX 6.3.2/6.4.0 * IBM OS/2 WARP 3/WARP 4 * SCO UnixWare UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0 * Sun Microsystems Solaris 10 Note : “ * ' Supported by special inquiry. Regulatory Approvals Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS Software Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) Environment Operation Temperature 0 to 60°C (32 to 140°F) Operation Humidity 5 to 95% RH Storage Temperature -20 to 85°C (-4 to 185°F) Dimension PCB Dimension 120 x 82 mm Bracket Standard 121 mm Bracket Space 1
