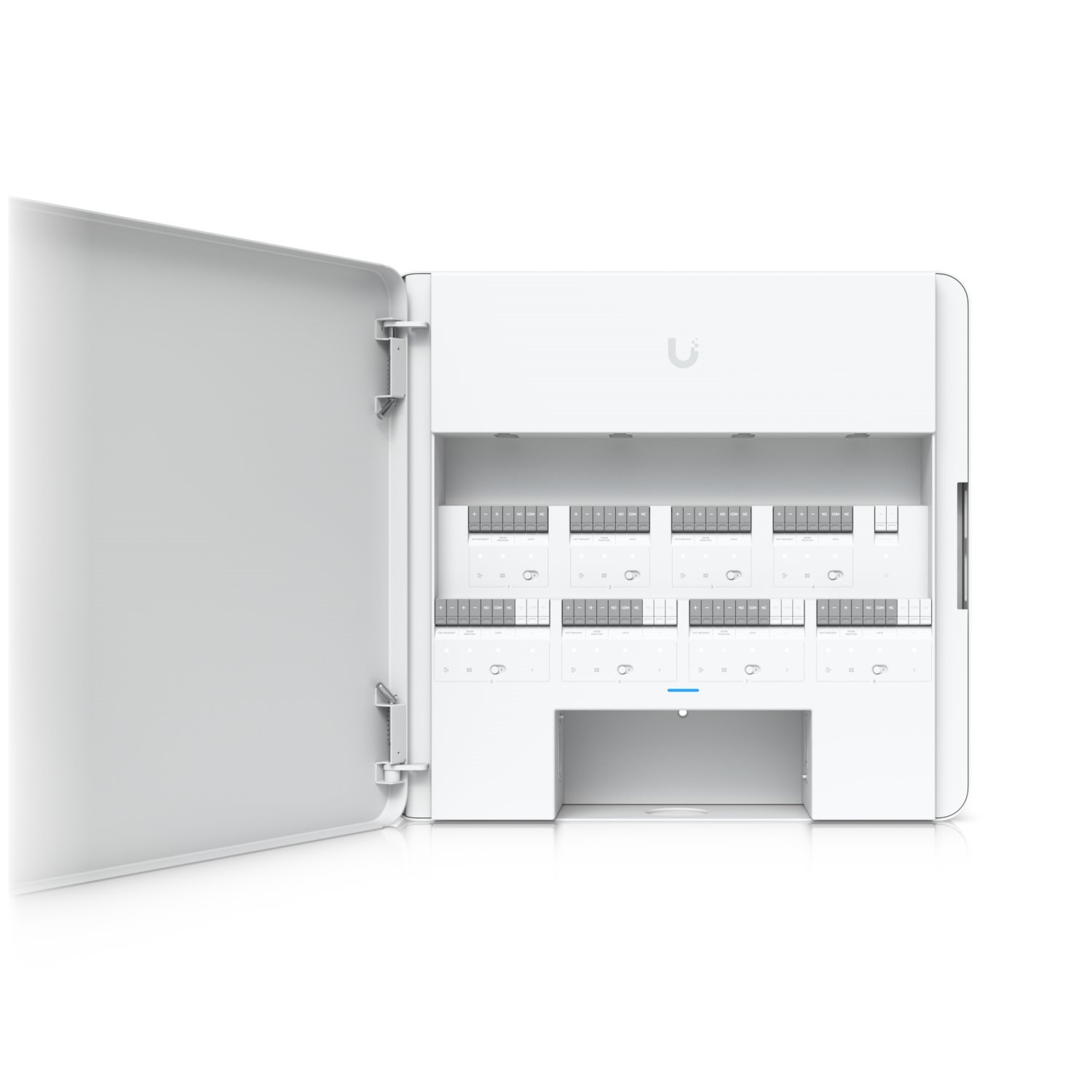

The Ubiquiti Enterprise Access Hub (EAH-8) is a sophisticated, enterprise-grade solution for comprehensive access control. Designed to manage entry and exit for up to eight doors, this hub seamlessly integrates into the UniFi Access ecosystem. It provides robust security and centralised management, making it an ideal choice for businesses looking to enhance their premises' security. The system is powered by a universal AC input and includes a crucial battery backup input, ensuring continuous operation even during power outages. This focus on reliability gives you peace of mind that your security system is always active.
This access hub is engineered for versatility and ease of installation. It features eight PoE ports to directly power UniFi Access Readers, which simplifies wiring and reduces installation complexity. Furthermore, the EAH-8 supports a wide array of access control devices, including electric bolts, magnetic locks, motion sensors, and push buttons. This compatibility ensures that it can be integrated into new or existing security setups with minimal fuss. The inclusion of auxiliary terminals for chimes, sirens, or external door openers adds another layer of customisation to your security alerts and responses.
Management of the UniFi Enterprise Access Hub is handled through the intuitive UniFi Access application. This powerful software allows for easy administration of users, visitors, access schedules, and specific security policies from a user-friendly browser-based interface. You can effortlessly monitor access events in real-time and maintain detailed logs for security audits. The hub's robust construction and comprehensive feature set provide a scalable and future-proof foundation for your organisation's physical security needs.
For enhanced security, the EAH-8 is equipped with numerous inputs and outputs to connect a variety of security peripherals. It includes dedicated inputs for request-to-exit devices and door position sensors for each of the eight doors, providing complete oversight of every entry point. The system's design also incorporates an emergency input for immediate lockdown or release protocols. With its combination of powerful hardware, flexible integration options, and user-friendly management software, the UniFi Enterprise Access Hub is the definitive choice for modern, streamlined access control.
FEATURES
- Controls up to 8 doors with both entry and exit management
- Eight PoE ports for powering UniFi Access Readers
- Supports most electric bolts, magnetic locks, and 12V access accessories
- Inputs for request-to-exit devices and door position sensors
- Battery backup support for uninterrupted operation
- Managed with the UniFi Access application
- Four auxiliary terminals for chimes, sirens, or door openers
- Seamless integration into the wider UniFi ecosystem
SPECIFICATIONS
- Networking Interface: 10x 10/100/1000 Base-T RJ45 Ports
- PoE Interface: 8x PoE Ports
- Max. PoE Wattage per Port: 15.4W
- Total Available PoE: 60W
- Power Method: Universal AC input, 100–240V AC; 32–48V DC Lead Acid Battery Backup
- Max. Power Consumption: 240W
- Lock Terminals: 8 (12V or Dry)
- Inputs: 8 for request-to-exit devices, 8 for door position sensors, 1 for emergency
- Auxiliary Terminals: 4 (Dry)
- Enclosure Material: SGCC housing with PC cover
- Dimensions: 379mm x 355mm x 105mm
- Weight: 9.1kg
- Operating Temperature: 0 to 40°C
- Operating Humidity: 5 to 95% non-condensing
WARRANTY
2-Year Limited Warranty
