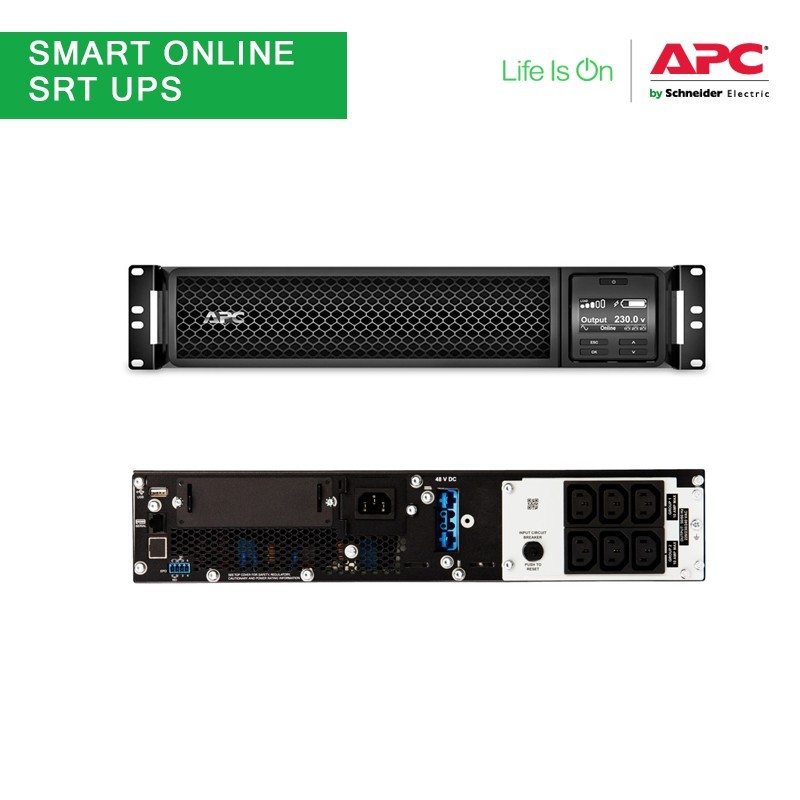

Smart-UPS On-Line
High density, double-conversion on-line power protection with scalable runtime
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads up to 1kVA in a rack/tower convertible form, the Smart-UPS On-Line is available in 2RU. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 1-3kVA UPS models have a SmartSlot for a Network Management Card for remote management (Network management card AP9641 is included with UPS-NC BUNDLES). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com.au
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Series
- SRT
- Product Type
- Double Conversion Online UPS
- Technical Information
- Plug/Connector Type
- IEC 60320 C14
- Receptacle Type
- IEC 60320 C13
- Receptacle Detail
- 6 x IEC 60320 C13
- Number of Battery & Surge Outlets
- 6
- Transfer Time
- 0 ns
- Application/Usage
- Computer
- IT Equipment
- Server
- Voice/Data Network
- Medical
- Industry
- Power Description
- Load Capacity (VA)
- 1 kVA
- Load Capacity (Watt)
- 1 kW
- Input Voltage
- 230 V AC
- Input Voltage Range
- 50 V AC - 150 V AC
- Output Voltage
- 230 V AC
- 240 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 432 J
- Controls/Indicators
- Status Indicators
LCD Graphics Screen
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- EPO Port
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Number of Batteries
- 1 x APCRBC155
- Battery Characteristics
- Maintenance-free, Sealed
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 8.40 Minute
- Backup/Run Time (Half Load)
- 21.10 Minute
- Typical Battery Recharge Time
- 3 Hour
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -20°C - -50°C
- Maximum Operating Elevation
- 3 km
- Maximum Storage Elevation
- 15 km
- Operating Humidity
- 0% - 95%
- Storage Relative Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 50 dB(A)
- Thermal Dissipation
- 317 BTU/h
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 85 mm
- Width
- 432 mm
- Depth
- 505 mm
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 21 kg
- Miscellaneous
- Software Included
- APC Powerchute Network Shutdown Software
- Environmentally Friendly
- Yes
