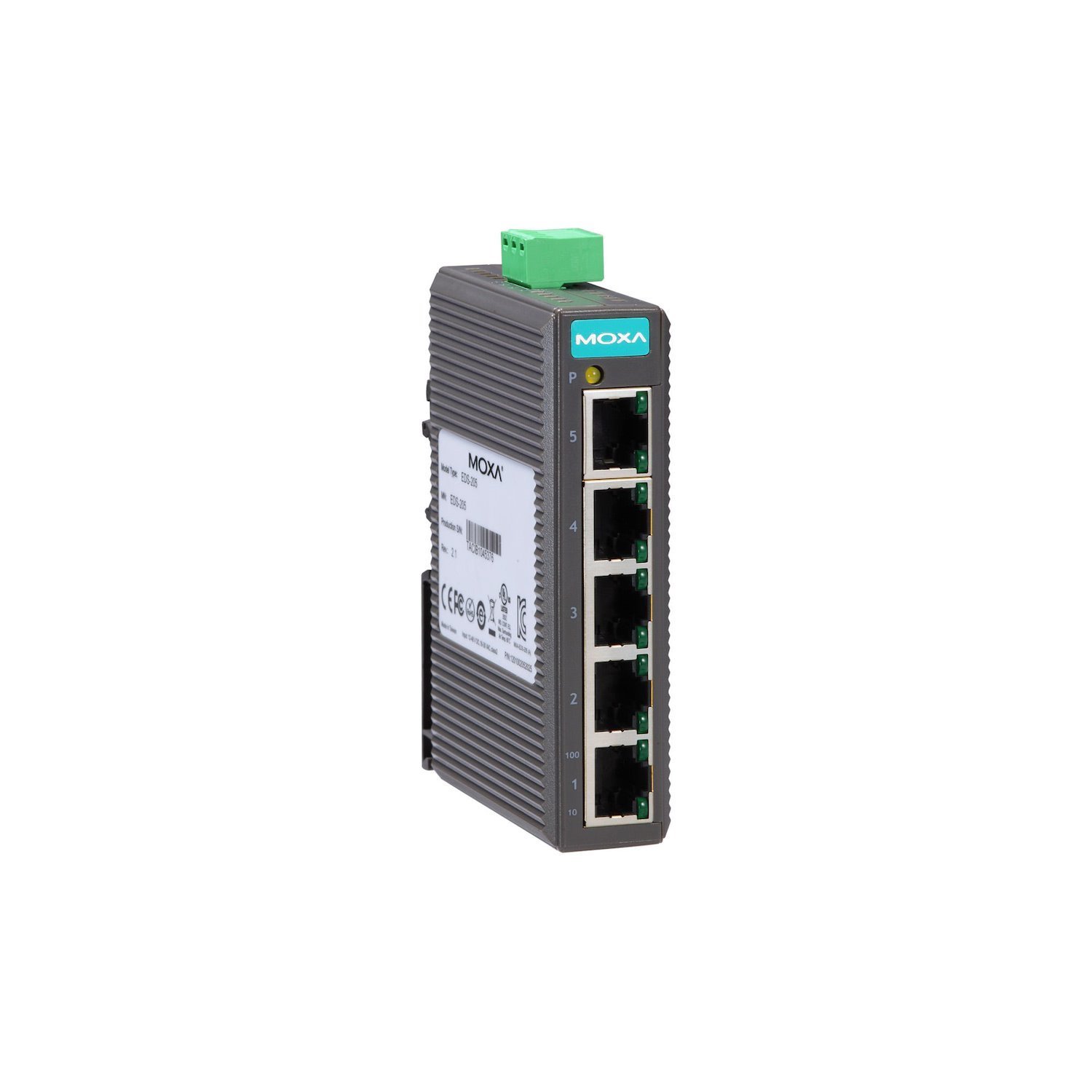

The Moxa EDS-205A is a compact and rugged unmanaged Ethernet switch, specifically engineered for industrial environments where reliability is paramount. This entry-level device provides a simple and effective solution for expanding your industrial network with five 10/100BaseT(X) ports. Its durable IP30 rated aluminium housing and DIN-rail mounting capability ensure easy integration and long-lasting performance in control cabinets and other space-constrained locations, making it an ideal choice for factory automation, intelligent transportation systems, and other demanding applications.
Designed to withstand harsh conditions, the EDS-205A features a standard operating temperature range of -10 to 60°C. It supports redundant dual 12/24/48 VDC power inputs, a critical feature for maintaining network uptime by allowing for simultaneous connection to two live power sources. This safeguard ensures that your operations continue uninterrupted, even in the event of a primary power supply failure, providing peace of mind for critical industrial processes.
The plug-and-play functionality of the EDS-205A simplifies network deployment, requiring no complex setup or software configuration. The switch supports IEEE 802.3/802.3u/802.3x standards with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing, ensuring seamless communication between connected devices. Additionally, it incorporates broadcast storm protection, which can be enabled via a DIP switch, enhancing network stability by preventing excessive network traffic from degrading performance.
FEATURES
- 5 x 10/100BaseT(X) RJ45 ports with auto MDI/MDI-X
- Redundant dual 12/24/48 VDC power inputs for high availability
- IP30 rated aluminium housing for durability in industrial settings
- DIN-rail mounting capability for easy installation
- -10 to 60°C operating temperature range
- Broadcast storm protection to prevent network flooding
- Supports IEEE 802.3/802.3u/802.3x standards
SPECIFICATIONS
- MAC Table Size: 1K
- Packet Buffer Size: 384 kbits
- Processing Type: Store and Forward
- Input Voltage: 9.6 to 60VDC
- Input Current: 0.09A @ 24VDC
- Connection: 1 removable 4-contact terminal block
- Reverse Polarity Protection: Supported
- Overload Current Protection: Supported
- Housing: Aluminium
- Dimensions: 30mm x 115mm x 70mm
- Weight: 175g
- Installation: DIN-rail mounting
- MTBF (Mean Time Between Failures): 3,040,784 hrs
WARRANTY
5-Year Limited Warranty
