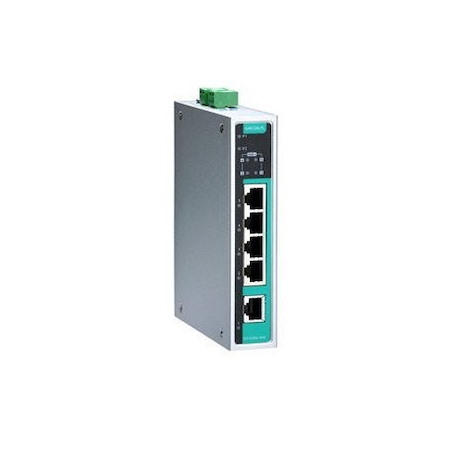

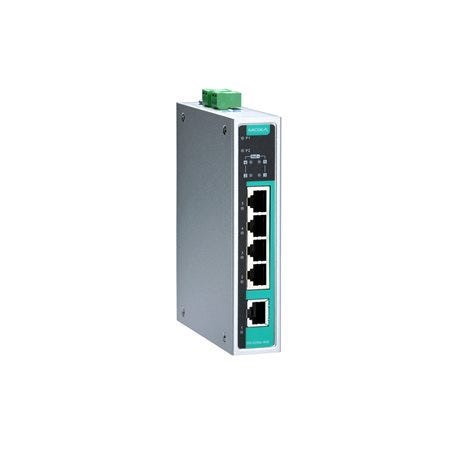

The Moxa EDS-G205A-4PoE is a smart, industrial-grade unmanaged Ethernet switch designed to provide robust network connectivity and power in demanding environments. It features five full Gigabit Ethernet ports, ensuring high-bandwidth performance to eliminate network bottlenecks. This switch is classified as Power Source Equipment (PSE), simplifying your infrastructure by allowing power and data to be transmitted over a single Ethernet cable.
Engineered for reliability, four of the five ports are compliant with IEEE 802.3af/at PoE+ standards, delivering up to 36W of power per port. This makes it ideal for powering high-demand devices such as IP surveillance cameras, wireless access points, and VoIP phones, centralising the power supply and dramatically reducing installation complexity and cost. Smart features like intelligent power detection, classification, and overcurrent protection ensure your connected devices are safe and powered efficiently.
The EDS-G205A-4PoE is built to withstand industrial conditions, featuring a rugged IP30-rated metal housing and a fanless design for silent and dependable operation. It supports redundant 12/24/48VDC power inputs, ensuring continuous operation even if one power source fails. Installation is straightforward with standard DIN-rail mounting, making it a perfect plug-and-play solution for expanding your industrial Ethernet network with both speed and power.
FEATURES
- 5 x Full Gigabit Ethernet ports for high-speed connectivity
- 4 x IEEE 802.3af/at PoE+ compliant ports
- Up to 36W power output per PoE port
- 12/24/48VDC redundant dual power inputs
- Intelligent power consumption detection and classification
- Smart PoE overcurrent and short-circuit protection
- Supports 9.6KB jumbo frames
- Durable IP30-rated metal housing
- Standard DIN-rail mounting
SPECIFICATIONS
- Model: EDS-G205A-4PoE
- RJ45 Ports: 5 x 10/100/1000BaseT(X)
- PoE Ports: 4
- Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for flow control, IEEE 802.3af/at for PoE/PoE+ output
- MAC Table Size: 8K
- Packet Buffer Size: 1 Mbits
- Input Voltage: 12/24/48VDC
- Operating Voltage: 12 to 57VDC
- Power Consumption: Max. 11.73W (without Power Device consumption)
- PoE Power Budget: 120W (max total) @ 24VDC, 144W (max total) @ 48VDC
- Housing: Metal
- IP Rating: IP30
- Dimensions: 29mm x 135mm x 105mm
- Weight: 300g
- Operating Temperature: 0 to 60°C
- MTBF: 1,564,608 hrs
WARRANTY
5-Year Limited Warranty
