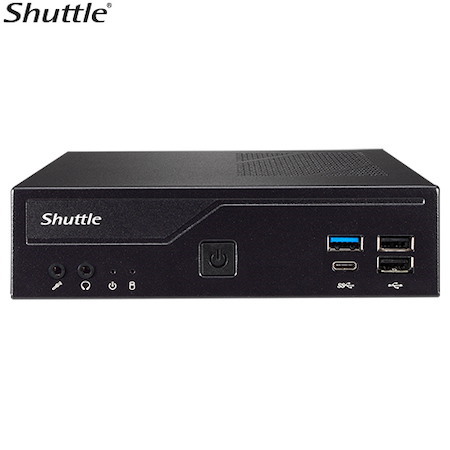

Shuttle DH610 XPC Slim 1L Barebone, H610, Lga1700, 2X DDR4 Sodimm, 1X M.2, 1X 2.5', Hdmi + 2X DP, RS232,

  • Part: 1762102
$595.00

Availability

In Stock

Model DH610 Cooling system Smart fan CPU Intel® 12th Gen LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor Chipset Intel® H610 Video Engine Processor Intel® UHD Graphics series Max Resolution 'HDMI 4096x2160@60Hz DisplayPort 4096x2160@60Hz' Memory 2 x DDR4 3200/2933/2666 MHz, Max. 64GB Storage '1 x 2.5'' HDD/SSD (max. 12.5 mm) 1 x SD card' Expansion Slots '1 x M.2 2280, M Key 1 x M.2 2230, E Key' Video Output HDMI Port 1 DisplayPort 2 VGA Port Optional USB 3.2 Gen1/Gen2 (Front) 2(Include Type C x 1)/- USB 2.0 (Front) 2 USB 3.2 Gen1/Gen2 (Rear) 2/- USB 2.0 (Rear) 2 COM Port '1 x RS232 1 x RS232/422/485, Support 5V/12V' Line out/Mic in 1/1 Network LAN '1 x Intel® 1G LAN 1 x Intel® 2.5G LAN' Wifi Optional VESA Bracket included Dimension (L/W/H) mm 190 x 165 x 43 Certification CB, CE, BSMI, cTUVus, FCC, RCM, RoHS, VCCI Operating Temperature (⁰C) 0~50 Chassis Metal
