- General Information
- Manufacturer
- Juniper Networks, Inc
- Manufacturer Website Address
- http://www.juniper.net
- Brand Name
- Juniper
- Product Series
- EX4100
- Product Type
- Ethernet Switch

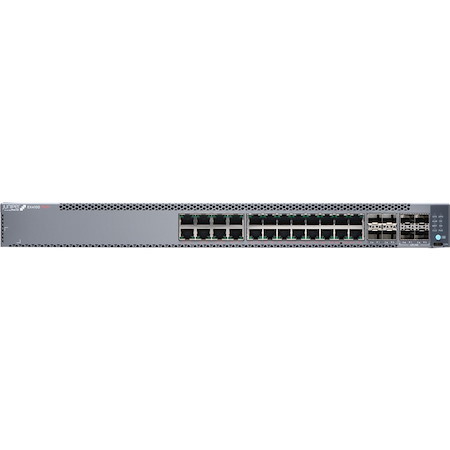

The Juniper Networks® EX4100 line of Ethernet Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, campus, and data center networks. The EX4100 switches combine the simplicity of the cloud, the power of Mist AI™ , and a robust hardware foundation with best-in-class security and performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100 line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.
Key features of the EX4100 include:
- Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
- Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
- Standards-based microsegmentation using group-based policies (GBPs)
- Switch-to-switch encryption using Media Access Control Security (MACsec) AES256
- IEEE 802.3bt Power over Ethernet Plus (PoE++)
- Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
- Precision Timing Protocol-Transparent Clock
- 10-member Virtual Chassis support
The EX4100 family of Ethernet switches consists of the following models:
- The EX4100-48MP, which offers 16 x 100 MB/1GbE/2.5GbE and 32 x 10 MB/100MB/1GbE Power over Ethernet (PoE++) access ports, delivering up to 90 W per PoE port with an overall total 1620 W of PoE power budget (using two power supplies)
- The EX4100-24MP, which offers 8 x 100 MB/1GbE/2.5GbE/5GbE/10GbE and 16 x 10 MB/100 MB/1GbE PoE++ access ports, delivering up to 90 W per port with an overall total 1620 W of PoE power budget (using two power supplies)
- The EX4100-24T, which offers 24 x 1GbE non-PoE access ports
- The EX4100-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 1440 W of PoE power budget (using two power supplies)
- The EX4100-48T, which offers 48 x 1GbE non PoE-access ports
- The EX4100-48P, which offers 48 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 1440 W of PoE power budget (using two power supplies)
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Uplink Port
- Yes
- Modular
- Yes
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Uplink
- 4 x 25 Gigabit Ethernet Stack
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Ethernet Technology
- 10 Gigabit Ethernet
- Gigabit Ethernet
- 25 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 10GBase-X
- 25GBase-X
- I/O Expansions
- Expansion Slot Type
- SFP+
- SFP28
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1ae
- IEEE 802.11ax
- IEEE 802.1ab
- IEEE 802.1ak
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3ae
- IEEE 802.3by
- IEEE 802.3ax
- IEEE 802.3ah
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.3ad
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Supported
- 2
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Wall Mountable
- Height
- 43.7 mm
- Width
- 440.9 mm
- Depth
- 350 mm
- Weight (Approximate)
- 4.41 kg
- Miscellaneous
- TAA Compliant
- Yes
